Lynx Studio AEs16e Cards AES16e

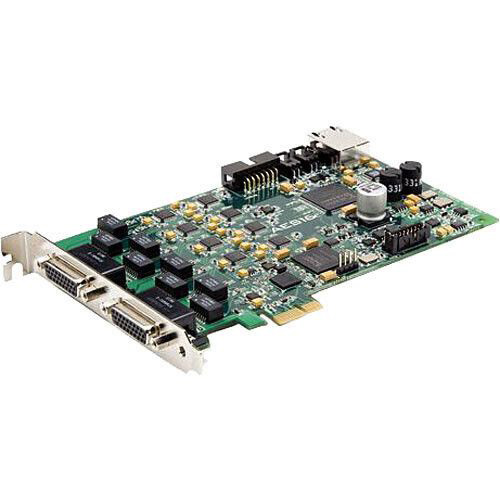

The AES16e from Lynx Studio Technology is a PCI Express card that provides up to sixteen channels of AES/EBU input and output to and from a computer. The card helps integrate digital consoles, multi-channel A/D and D/A converters and hard disk recorders with computer-based workstations.

The AES16e supports the single-wire, 192kHz standard and is compatible with existing dual-wire AES/EBU devices. Up to four cards can be installed into a single computer and with the included digital software mixer, the AES16 can turn a computer into a powerful digital router or patchbay with extensive flexibility and minimal cabling.

Offering a solution for jitter problems in AES signals, the card incorporates SynchroLock technology that provides extreme jitter tolerance at all inputs. By coupling statistical analysis with low-noise clock generation techniques, SynchroLock is able to extract a very clean clock from AES signals affected by long cable lengths and other noise sources.

Note:
Requires two CBL-AES1604 cables (not included) for full sixteen channel operation
PCI Express (PCIe) card that provides up to transformer-coupled sixteen-channels of AES/EBU digital input and output
24-bit/192kHz single-wire and dual-wire modes
SynchroLock provides extreme jitter tolerance at all inputs
Wordclock and multi-card synchronization
Multiple dither algorithms per channel
Features a zero-latency on-board digital mixer which allows flexible patch-bay style routing and digital mixing
Multi-channel support of 5.1 and 7.1 surround playback formats
Supports ASIO and WDM for Windows and CoreAudio for Mac OS X
Low-latency drivers for Windows and Macintosh
