PMC MB3S-A

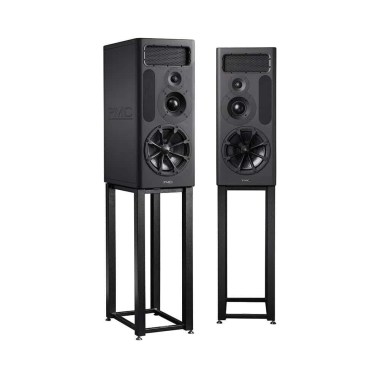

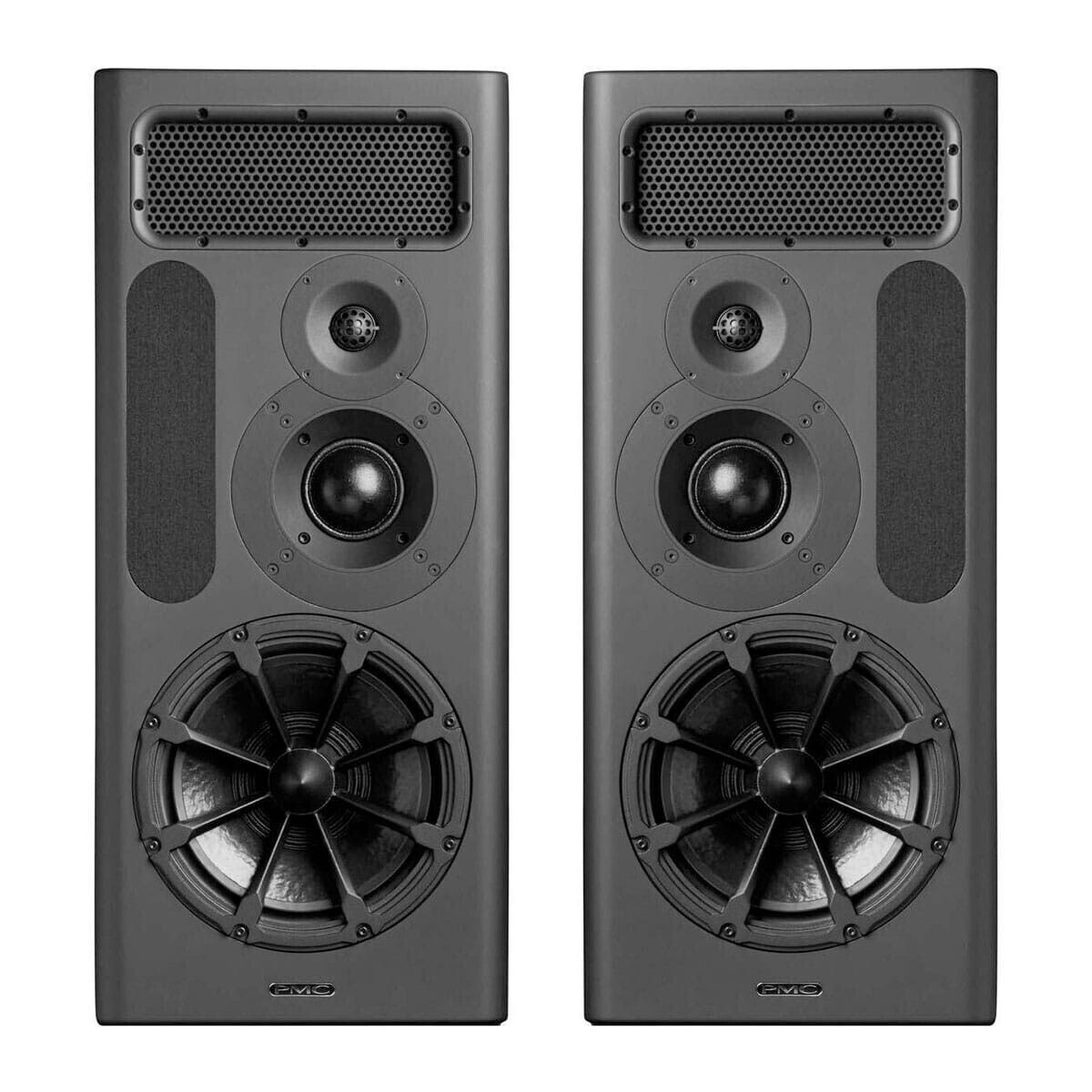

PMC MB3S-A3-way active studio monitorsWhether mounted in soffits or on stands, the MB3, with its distinctive 12-inch Radial™ bass driver, is ideal for medium-sized recording, mixing, mastering or outside broadcast facilities, or as rear surround speakers in larger multi-channel recording studios, film soundstages, or post-production houses. It produces an extremely smooth frequency response extending from 20Hz to 25kHz thanks to its ATL™ technology, and is also capable of producing high SPLs, to a maximum of 126dB, but without the distortion and loss of definition that are frequently associated with a device of its size, and without becoming fatiguing when used for extended periods. As with all PMC models, there is a matching low-profile centre channel (MB3-C-A) for use in surround configurations. Dedicated subwoofers are not a necessity, as the MB3-A cabinets already cover the 20-60Hz sub-bass frequency range with ease. For this reason, ‘PointOne’ channel inputs are included on the Control 1200 to accommodate the LFE or sub channel from multi-channel mixes.

• Type: 3-way ATL™ active reference monitor
• Frequency response: 20Hz-25kHz
• Power per channel: 3225W (HF 275W, MF 550W, LF 2400W)
• Effective ATL™ length: 3 metres
• Maximum SPL: 126dB

Specifications

• Available Finishes: Studio black
• Crossover Frequency: 380Hz & 3.8kHz
• Dimensions: H 870mm (34.2?) x W 380mm (15?) x D 535mm (21?)
• Drive Units: LF – PMC 310mm (12-inch) Radial driver
  MF – PMC hand built 75mm soft-dome driver
  HF – PMC 34mm soft-dome tweeter with acoustic radiator
• Effective ATL™ Length: 3m (10ft)
• Frequency Response: 20Hz – 25kHz
• Impedance: Input Impedance 20k Bal
• Input Connectors: AES3, 24-bit, 96kHz
• Weight: 49kg (108 lbs) each
• Amplifier Power per Channel: LF – 1 x 1200Wrms
  MF – 1 x 550Wrms
  HF – 1 x 275Wrms
