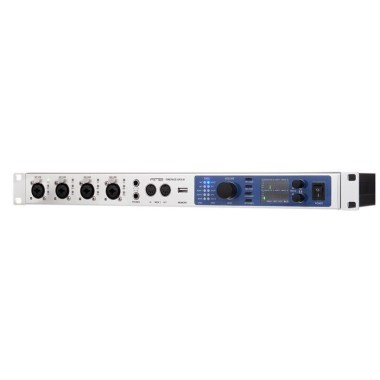

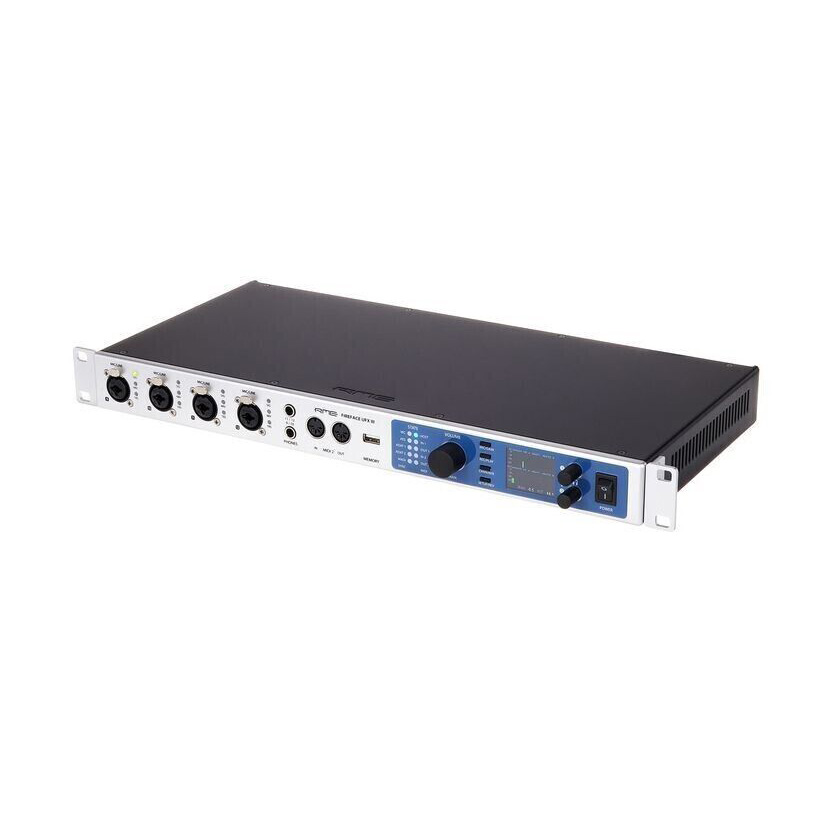

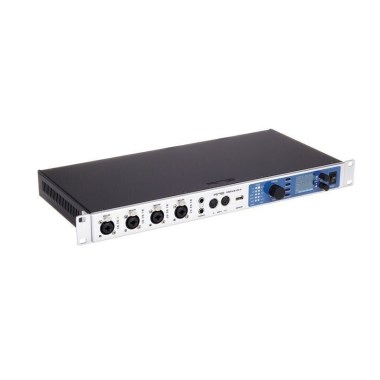

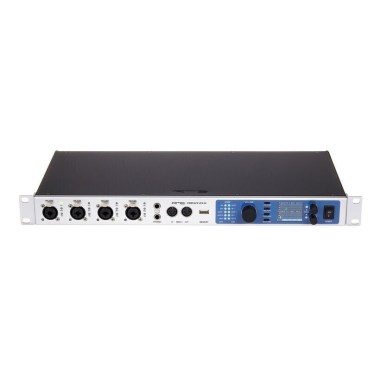

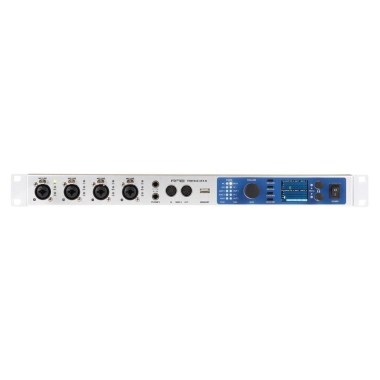

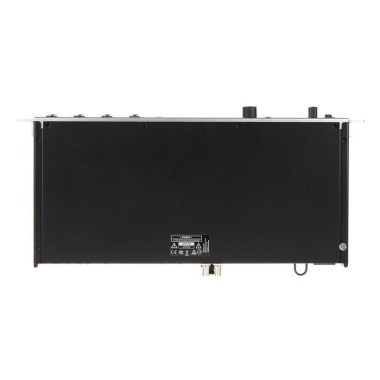

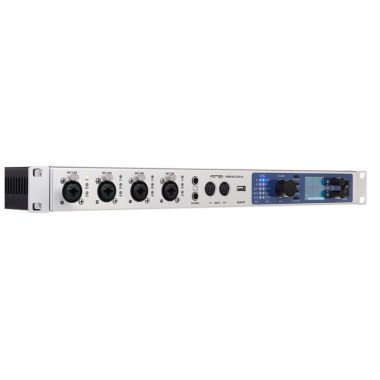

RME Fireface UFX III

• 188-Channel, 24-bit / 192kHz AD/DA converter
• DURec (Direct USB Recording)
• SteadyClock FS
• MADI I/O (64 channels)
• TotalMix FX
• Built-in DSP
• +48V phantom power
• TFT display
• AKM chips (AK5574 AD / AK4490 DA converters)
• DC-coupled analogue outputs
• Lock keys
• Remap keys
• USB 3 Class Compliant
• Construction: 19" / 1 U
• Dimensions (W x H x D): 483 x 44 x 210 mm
• Weight: 2.8 kg
• Expandable with optional RME ARC remote control (not included)

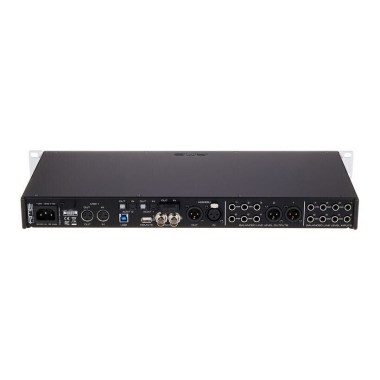

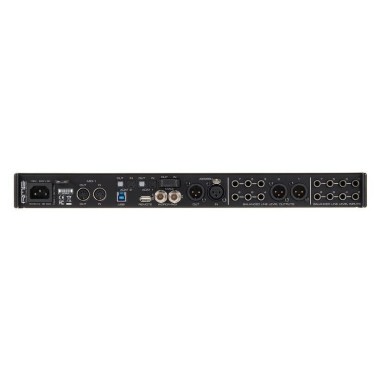

Connections

• 4 Mic/Line inputs: XLR/jack 6.3 mm combo
• 8 Line inputs: 6.3 mm jack balanced
• 2 Line outputs: XLR
• 6 Line outputs: 6.3 mm jack balanced
• 2 Stereo headphone outputs: 6.3 mm jack
• 2 Optical inputs and outputs ADAT / S/PDIF
• AES input and output XLR
• Word clock input and output BNC
• MADI input and output
• 2 MIDI inputs and outputs
• Remote input for optional RME ARC
• USB on the front
