Doepfer A-100LC3 Low Cost Frame

Рейтинг: 5/5
ПроизводительDoepfer
Доступность:на заказ
Артикул:572627
20530 Р
*еще -3% в корзине при оплате наличными или переводом
Doepfer A-100LC3 Low Cost Frame Eurorack - кейсы для модульных синтезаторов Doepfer A-100LC3 Low Cost Frame Вы можете купить по выгодной цене в наших музыкальных магазинах в Москве и Санкт-Петербурге, интернет-магазин, доставка по России.
Этот товар поставляется на заказ. Уточним доступность или предложим замену!

Описание

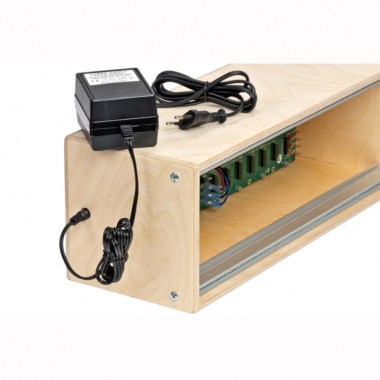

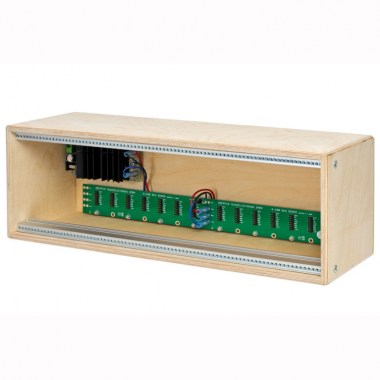

This frame is the small version of the low-cost cases A-100LC6/LC9, which is identical in construction to the A-100LC6, but has only one row with 84HP available for the installation of modules. It is equipped with a power supply (1200mA). For space reasons, the power supply of DIY-Kit #1 is used, as there is not enough space for the "normal" power supply A-100PSU3. Power is supplied by an external 230 volt AC power supply (transformer) as in DIY kit #1, with a hole on the left side of the case for plugging in the power supply (the external power supply is not shown in the photos above). The housing is made of raw wood and can be painted in any desired colour with the aid of a paint spray can, for example.

- Dimensions:
  • outside: approx. 445 (W) x 150 (H) x 160 (D)
  • inside: 1 x 84 HP x 3 U

- Usable depth for A-100 modules: approx.110 mm (calculated from the inside of the front panel)


- Weight (without modules):
  • approx. 2.5 kg without external transformer
  • approx. 3.5 kg with external transformer

- Number of bus boards: 1

- Maximum current output: 1200 mA
