Analogue Systems RS-300 CV-to-MIDI Eurorack модулиКупить Eurorack модули Analogue Systems RS-300 CV-to-MIDIAnalogue Systems RS-300 CV-to-MIDI Eurorack модули

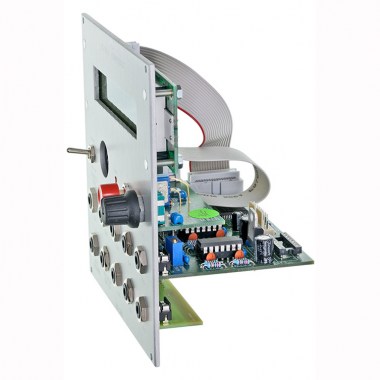

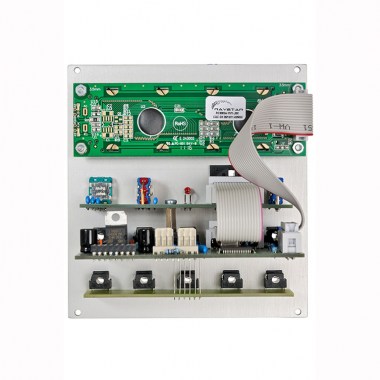

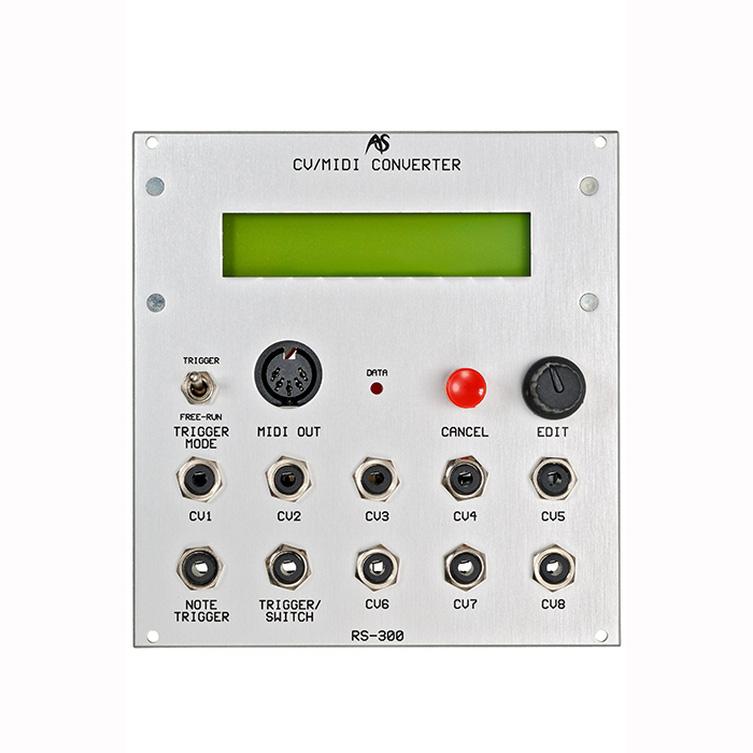

Analogue Systems RS-300 CV-to-MIDI

Рейтинг: 5/5
ПроизводительAnalogue Systems
Доступность:на заказ
*еще -3% в корзине при оплате наличными или переводом
Analogue Systems RS-300 CV-to-MIDI Eurorack модули Analogue Systems RS-300 CV-to-MIDI Вы можете купить по выгодной цене в наших музыкальных магазинах в Москве и Санкт-Петербурге, интернет-магазин, доставка по России.
Этот товар поставляется на заказ. Уточним доступность или предложим замену!


Unlike a MIDI/CV converter that converts MIDI data into control voltages, a CV-to-MIDI converter goes the other way: it is capable to generate MIDI messages from CV signals. The RS-300 offers eigth fee programmable CV inputs that can produce MIDI note numbers or controllers. Note on/off commands, control changes and the generation of MIDI Clock is possible as well. Operation is pretty easy due to a big display and the unit even has memory. Eight CV inputs are available, some of which have special features. All inputs have in common that you can generate an aftertouch command, a pitch bend or a controller from#0-#127. For each input you can set a voltage scale matching your input CV: (-10V to 10V; -5V to 5V; 0V to 10V and 0V ot 5V). CV inputs 1 and 2 have special functions in addition: CV1 is suitable for generating note commands. A new note will be sent whenever there is a transition reaching a semitone at this input as well as a note on/off command (in Trigger-Mode a note message will be sent only when there?s a trigger at the "NoteTrigger" input. In Free Run mode a note will be sent whenever the voltage changes, see above). You can set a fixed velocity, transpose the note ±36 semitones, delay notes etc. CV2 can generate velocities which is quite practical when you want dynamic in your MIDI signal; CV1 has to be set to note mode and fixed velocity must be turned off. The Trigger/Switch input is complex, as it can generate percussion notes at a fixed MIDI note (handy for drums), sends Program Changes, Pedal commands like sustain, sostenuto, legato etc. and it can even generate a MIDI Clock from a stream of pulses! All settings can be saved as the RS300 has 40 memories which you can name.
All modules by Analogue Systems come ready to use with five years warranty mounted in the by the customer preferred rack or cabinet.

For a timely delivery please confirm your choice and configuration as customer or specialised dealer via email
The module requires a powerful +5V voltage to operate.
