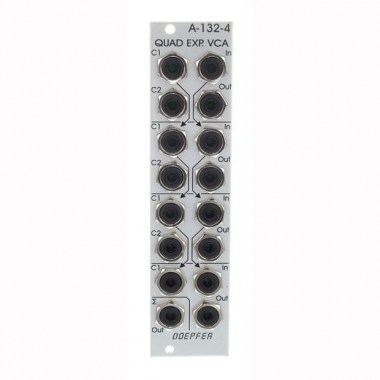

Doepfer A-132-4 VCA/Mixer

Рейтинг: 5/5
ПроизводительDoepfer
Доступность:на заказ
Артикул:564856
Специальная цена:
13125 Р
Обычная цена:
14747 Р
Вы экономите:
-1622 Р
*еще -3% в корзине при оплате наличными или переводом
Quad Exponential VCA / Mixer The module A-132-4 contains four identical voltage-controlled amplifiers (VCA) with exponential normalization. Each VCA has two control voltage inputs (CV1, CV2), a signal input (In), and a... Eurorack модули Doepfer A-132-4 VCA/Mixer Вы можете купить по выгодной цене в наших музыкальных магазинах в Москве и Санкт-Петербурге, интернет-магазин, доставка по России.
Этот товар поставляется на заказ. Уточним доступность или предложим замену!

Описание

Quad Exponential VCA / Mixer

The module A-132-4 contains four identical voltage-controlled amplifiers (VCA) with exponential normalization. Each VCA has two control voltage inputs (CV1, CV2), a signal input (In), and a signal output (Out). The control voltage inputs CV1.1 and the signal inputs In1 can be bridged with the control voltage input CV2.1 via internal jumpers and with the signal input In2. This circuit is also available between amplifiers 2 and 3 as well as between amplifiers 3 and 4. If this circuit is not desired, then the jumpers must be removed.

In addition, the sum of all four outputs is available (lower left socket with the sum symbol). Therefore, amplifier 4 has only one control voltage input (CV4.1). If necessary, this socket can be bridged as control voltage input 2. Then the sum signal will no longer be available.

For each VCA output a jumper is available, which determines whether the output signal of the corresponding VCA is added to the sum signal. By default, all four jumpers are set (all four VCA output signals are added). By removing one or more of the jumpers, you can select which VCA output is added to the sum. The bridges can also be replaced by switches.

  • Four exponential VCAs
  • Designed mainly for audio signals
  • Sum of all four outputs is available
  • Width: 6 HP
  • Depth: 60 mm
  • Power requirement: +30 mA (+12 V) / -20 mA (-12 V)


Further Information
Width 6 TE / HP
exponential Yes
linear No

Спецификации

Размер и вес товара

Длина: 50.0000CM
Ширина: 20.0000CM
Высота: 40.0000CM
Вес: 8.0000kg
