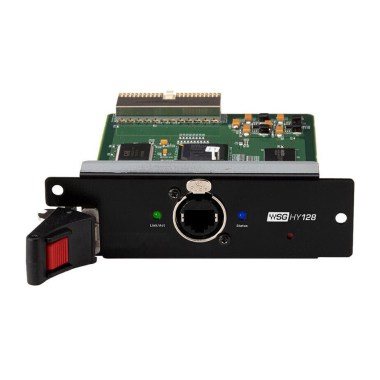

Waves SOUNDGRID WSG-HY128

WSG-HY128 is a card for HY slots that allows you to run Waves plugins on Yamaha RIVAGE PM series consoles at ultra-low latency, using Waves SoundGrid technology.

Together with a Mac or PC running SuperRack, a SoundGrid DSP server, and authorized Waves plugins, WSG-HY128 lets you process up to 128 channels of audio using Waves award-winning reverbs, equalizers, compressors, limiters, delays and more, with nearly no latency. You can also assign additional SoundGrid I/O devices to your network.

The WSG-HY128 card uses the Waves SoundGrid protocol to connect all I/O devices with the DSP server and the host computer. Multiple console synchronization and digital splits are supported using clock Sync over Ethernet (SoE).

• Run Waves plugins in real time on Yamaha RIVAGE PM series consoles
• Supported sample rates: 44.1, 48, 88.2 and 96 kHz
• Sample resolution: 24 bits
• 128 channels of audio at 44.1/48/88.2/96 kHz
• Clock Sync-over-Ethernet (SoE) for digital splits and audio networking
• The card can accept firmware changes/upgrades
