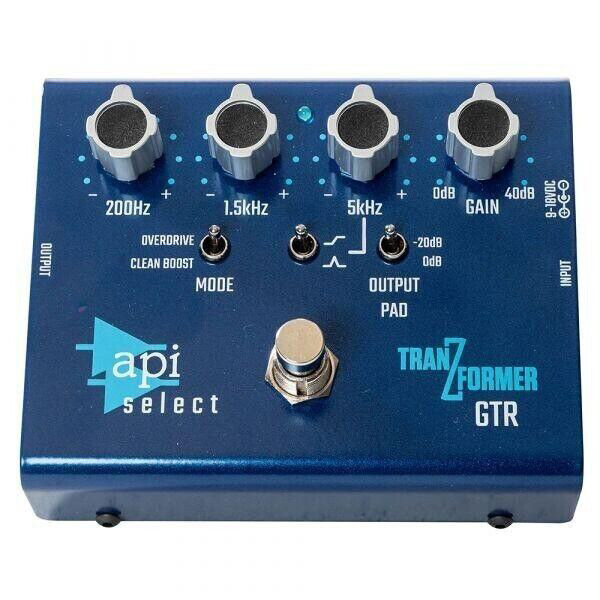

API Audio TranZformer GTR

The API Select TranZformer GTR Pedal incorporates API’s legendary EQ circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run on standard 9V power supplies, the GTR offers ±15 dB of gain on 3 specific frequencies. Additionally, the gain stage can be switched from Clean Boost to Overdrive mode to drive the input OpAmp and add even more tones to your arsenal. Other features include a buffered bypass, -20 dB output pad, selectable peak/shelf for upper frequency range, trans former output, and of course the classic API sound.

Requires separate power supply. 9 - 18V DC negative center, 2.1 x 5.5mm barrel connector. Do not use more than 18V DC.

FEATURES:

Proprietary API 2510 OpAmp
Signature API output transformer
3-band EQ each with ±15 dB of gain
OpAmp overdrive circuit
40 dB of gain
-20 dB output pad
Buffered bypass

Product Specifications
Input Connectors 1/4-inch TS
Output Connectors 1/4-inch TS
Power Supply Required (not included)
