Allen & Heath AE11078 SFP Module For SuperMADI Card

Allen & Heath AE11078/SFP Module For SuperMADI Card:

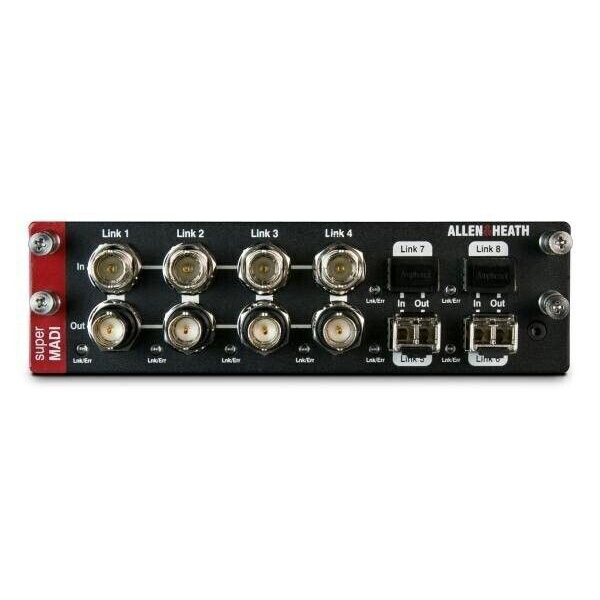

M-DL-SMADI (superMADI) is one of several audio networking options that can be fitted to an Allen & Heath dLive I/O Port. It provides a 128x128ch 48/96kHz interface to the AES MADI standard (AES10) over coaxial BNC and optional fiber optics. Sample rate and redundancy are switchable per link pair, with a choice of Smux or HighSpeed 96kHz mode. 4 Optical links on SFP slots (modules not supplied) allow the correct module to be chosen for the application.

Designed to help integrate dLive into a wide range of broadcast, live interface and recording scenarios, the superMADI interface card has numerous connectivity possibilities, including 8 BNC connectors and 4 SFP slots for fiber optic transceivers (not included). Both coaxial and optical formats offer up to 128 I/O at 96kHz each, and redundancy and sample rate are switchable per link pair, with a choice of Smux or HighSpeed 96kHz mode. The superMADI card can also be used by engineers and rental companies to link to any MADI-enabled third party console, allowing high-channel count digital splits, for example, between FOH and Monitors.

Features:

Sample rate set independently per link
Standard MADI
8x BNC (4 links)
8x SFP slots* (modules not included)
Switchable sample rate per link 48/96kHz
Switchable redundancy per pair
128 I/O on coaxial at 96kHz
128 I/O on optical at 96kHz
Choice of Smux or HighSpeed 96kHz mode
NOTE: *Can be populated with multimode or single-mode LC
