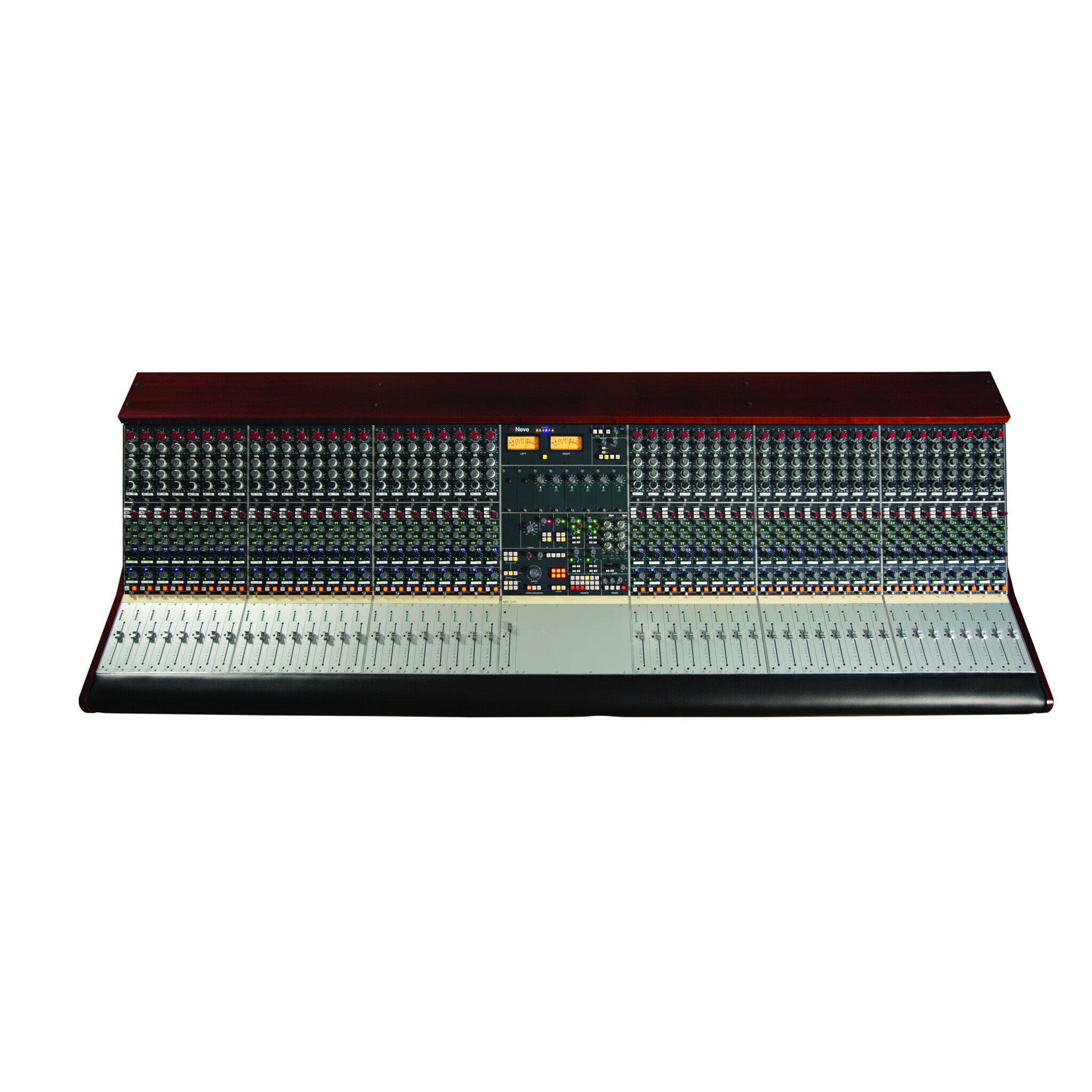

AMS Neve BCM10/2 MKII - 48 Channel

General Specification

Neve® classic sound using Class A topology
Console sizes: 10,16,24, 32 or 48 channels
1073N microphone preamp and EQ module in each channel
Classic voltage mixing using 1272 balanced mixing topology
2x 500-series slots fitted with Neve 2264ALB compressors, patchable or selectable across the Mix Bus
Direct outputs on every channel selectable pre or post channel insert
Simple Input to each channel doubles the mix inputs when mixing and also allows monitor and cue mixes
4x Auxes, 1x Stereo Cue, 1x Stereo Main Mix Bus
Stereo and 5.1 monitor with passive 24 position gold plated monitor level control
3x Stereo & 1x 5.1 selectable loudspeaker output sets
Comprehensive Solo system with destructive and safe/isolate modes
2x Stereo reverb returns with width, mono and balance controls & 2x mono DI to bus inputs
Main Mix output insertion selectable pre or post fade with IMR (Insert Mix Return) parallel processing controls
25-way D-sub connectivity for easy installation into home or studio environments

Audio Performance

Mic Input (Transformer-balanced) to Insert Send

Headroom – >+28.5dBu @ 10kohms bridging (<0.5% THD+N)
Frequency Response – Typically +/- 0.25dB, 20Hz to 20kHz
Distortion (THD+N) – Typically 0.028% @ 1kHz (measured at +20dBu 10Hz to 80kHz filter)
Noise (EIN) – <-126.0 dBu (20Hz to 22kHz filter, 60dB gain, input terminated 150? R)

Line Input to Mix Output

Headroom – >+28.5dBu @ 10kohms bridging (<0.5% THD+N)
Frequency Response – Typically +/- 0.25dB, 20Hz to 20kHz
Distortion (THD+N) – Typically 0.028% @ 1kHz (measured at +20dBu 10Hz to 80kHz filter)
Noise (EIN) – <-126.0 dBu (20Hz to 22kHz filter, 60dB gain, input terminated 150? R)
Mix bus Noise – typically -86dBu 20Hz to 20kHz filter
Output noise – typically -95dBu 20Hz to 20kHz filter
