APS AMBIENT Set

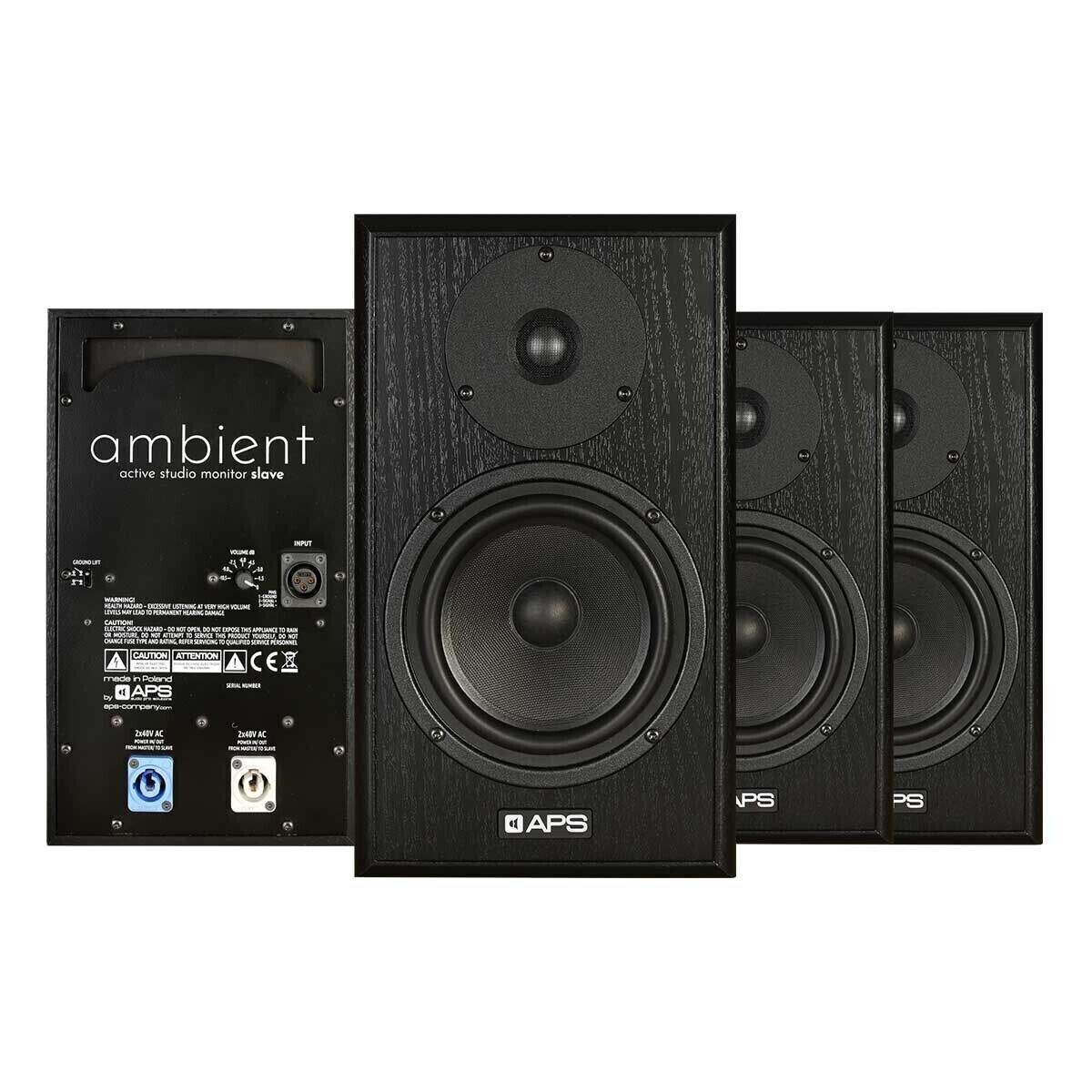

Set contains 1x Active Master and 3x Active Slave monitors.

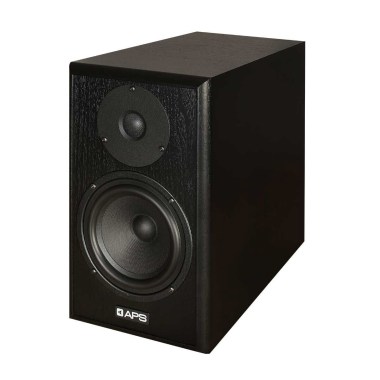

The APS AMBIENT is a studio monitor designed specifically for multi-channel systems such as Dolby ATMOS configurations. The Ambient excels at producing a perfect soundstage, with a completely natural sound quality that leaves the sound to be heard, and not the speaker. Reproduction is open, clear and dynamic, with sound sources perfectly and accurately located and rendered within the sound-field.

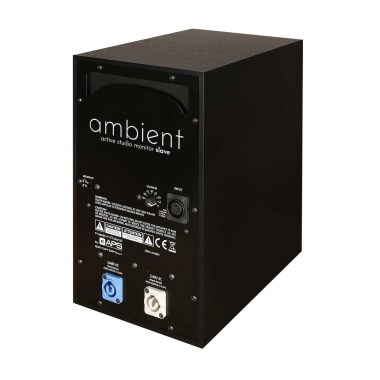

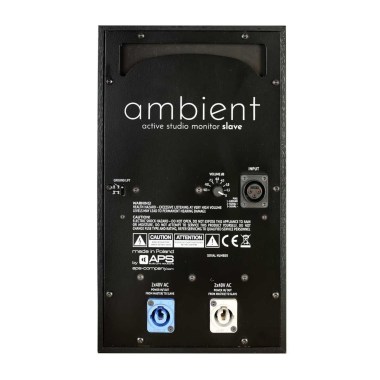

Active Slave monitors are powered by active Master monitors. The recommended monitor connection system is: 2 to 4 Slaves per 1 Master.

• Monitor Field: Near
• Type: Two-Way Active – two Class A/B power amplifiers
• Crossover Frequency: 3.5 kHz
• Dimensions (with heatsink*): Height ? Width ? Depth 331 cm ? 18.2 cm ? 28 cm 12.2” ? 7.2” ? 11”
• Free Field Frequency Response: ± 2 dB: 45 Hz ? 25 kHz
• SPLmax in free field (@ 1m): RMS: 102 dB (single) Peak: 110 dB (pair) P
• Weight (single): 8 (7) kg / 17.6 (15.4) lbs. *
• Bass/Mid-Range Loudspeaker or Bass Loudspeaker: 15 cm (6’’)
• Tweeter Loudspeaker: 1.9 cm (3/4”) double magnet Aluminium dome, surround: soft
• Bass/Mid-Range Power Amplifier or Bass Power Amplifier: 55 W RMS @ 15 Ohms
• Tweeter Power Amplifier: 100 W RMS @ 8 Ohms
• THD: 0.005 % @ 5 W, 1 kHz; 0.1 % max @ 0.1 up to 50 W, 20 Hz up to 20 kHz
• Input Voltage Level: 0 dBu (i.e. 0.775 V) – calibrated regulators in 0dB positions – for 100dB SPL in Free Field @ 1m
• Input Sensitivity Switch or Switches: -10.5dB, -9dB, -7.5dB, -6dB, -4.5dB, -3dB, -1.5dB, 0dB
• Tweeter Loudspeaker Level Switch or Phase Switch: -1.5dB, 0dB, 1.5dB
• Bass Controller Switch or Drivers Switch (Trinity) or Unfiltered Switch(Subs): Bass: Active – switch 1&3, Passive – switch2 – refer to USER’S MANUAL
• Ground-Lift Switch: Ground Lift: ON / OFF
• Input: XLR symmetrical (balanced)
