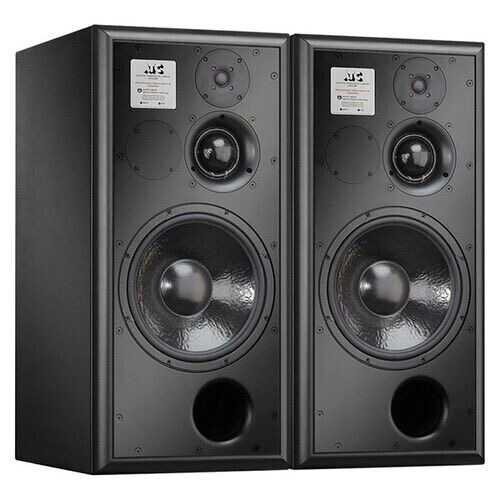

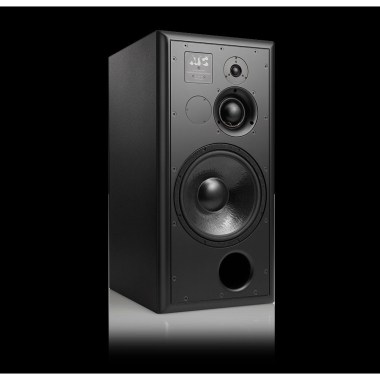

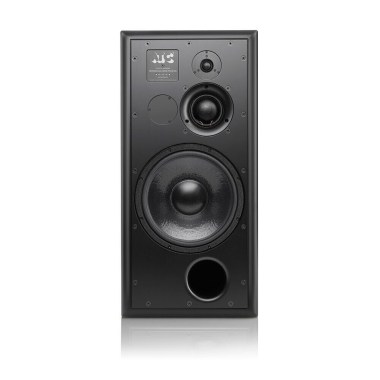

ATC SCM100AIW Pro

Цена за пару

In-Wall / Soffit Mount models. Full-face square edge baffles & recessed connector panel in rear. Requires remote amp hardware, NL8 speaker cables & 5-pin XLR LED cables - sold seperately. Cable lengths must be specified – Max. 10m recommended.

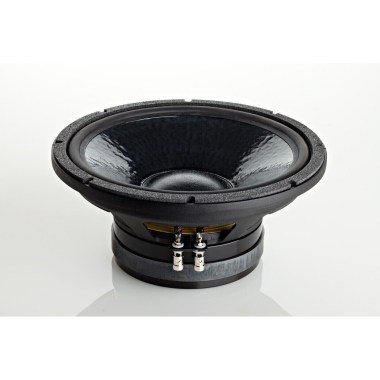

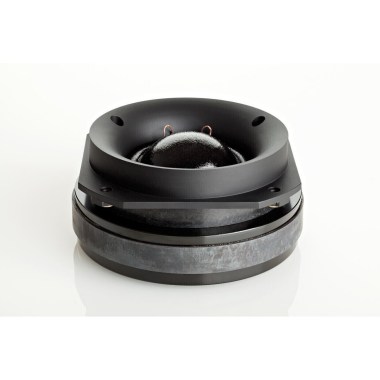

Drivers: HF 1?/25mm, Mid 3?/75mm, LF 12?/314mm
Amplitude Linearity (±2dB): 65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10k?
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 832 x 398 x 581mm (32.8? x 15.7? x 22.9?) Depth with amplifier at rear adds 3?
Weight: 65kg / 143lbs
