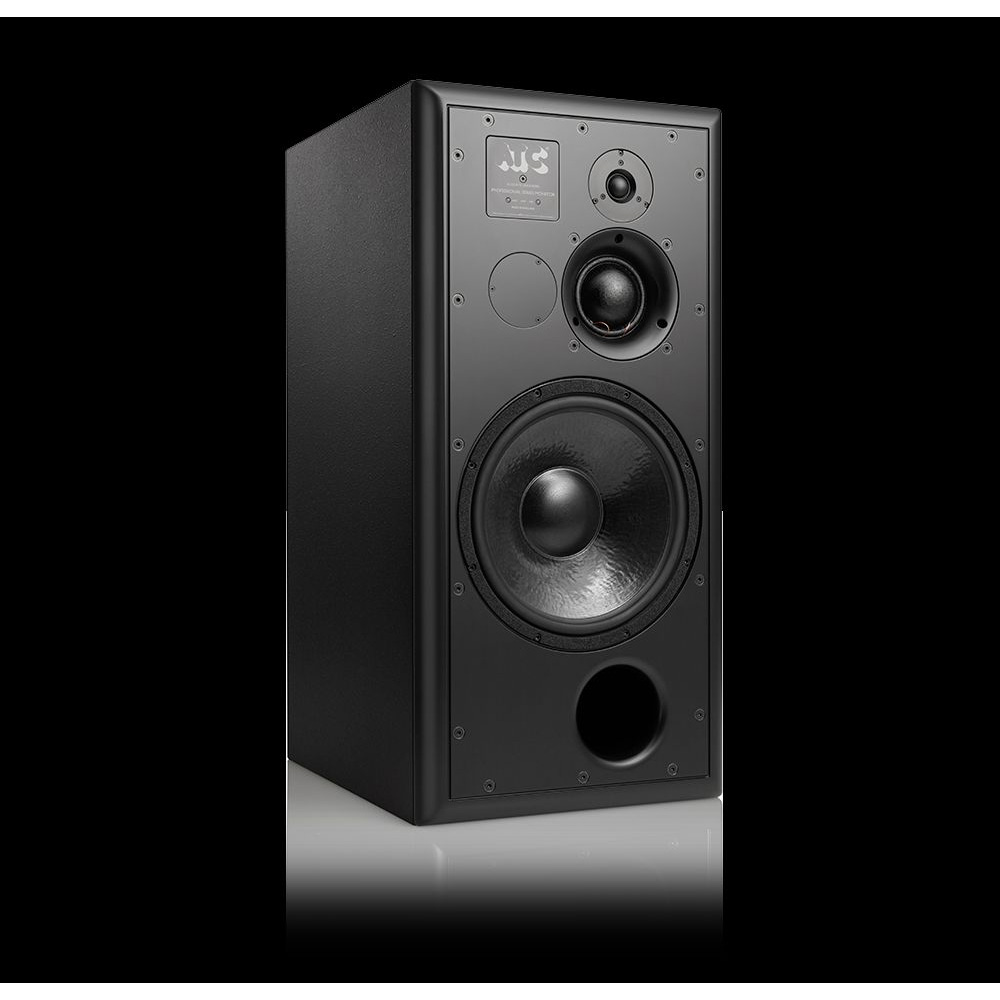

ATC SCM100SL PRO

The ATC SCM100SL PRO is the passive version of the ATC SCM100A SL PRO studio monitor. These 3-way monitors offer outstandingly low colouration at the highest sound pressure levels, superb dispersion, and excellent linearity. The SCM100ASL Pro s based around the same tweeter, midrange and amp configuration as the SCM50ASL Pro, but using a 314mm bass driver in a larger enclosure. Maximum continuous SPLs of up to 115dB/1m are possible. 4th order active crossovers produce a highly linear amplitude response for both direct and ambient fields, contributing to exceptional stereo imaging.

3-way active monitor
25mm soft dome tweeter
Full “SL” spec 12?/314mm bass driver
ATC 3?/75mm “Super Dome” mid driver
LF contour control
Clip indication
6 year warranty

• Drivers: HF 25mm, Mid 75mm, LF 314mm
• Amplitude Linearity (±2dB): 65Hz-17kHz
• Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
• Horizontal Dispersion: ±80°, Coherent
• Vertical Dispersion: ±10°, Coherent
• Max. Continuous SPL (1 metre): 115dB
• Crossover Frequencies: 380Hz, 3.5kHz
• Input Connectors: Male XLR
• Input Sensitivity: 1V
• Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
• Input Impedance: Balanced > 10k?
• Filters: Even Order Critically Damped
• Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
• Front Panel Indicators: Power On indicator, Gain Reduction warning
• LF EQ: +6dB @ 40Hz
• Dimensions (HxWxD): 832 x 398 x 581mm (32.8E? x 15.7E? x 22.9E?)
