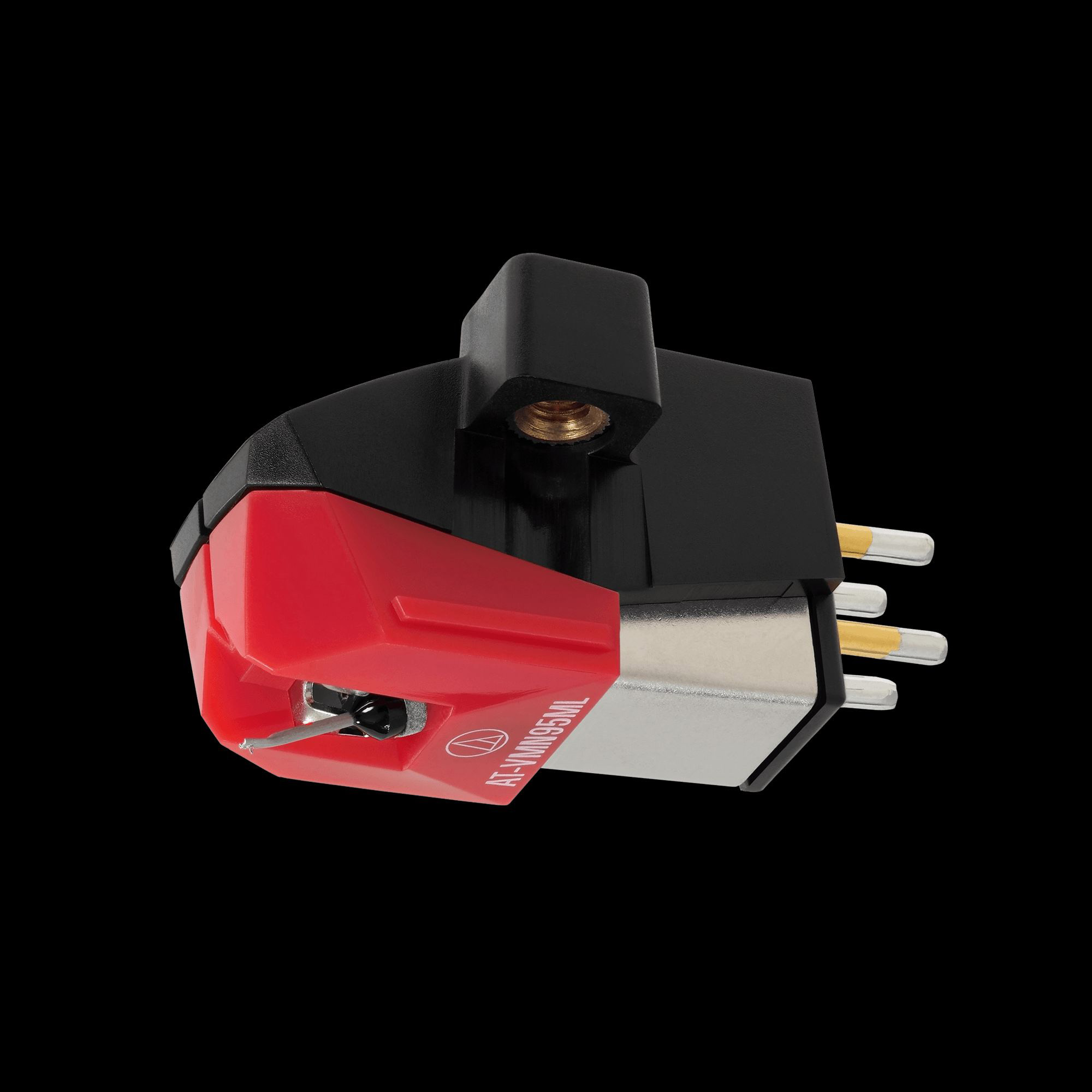

Audio-Technica AT-VM95ML

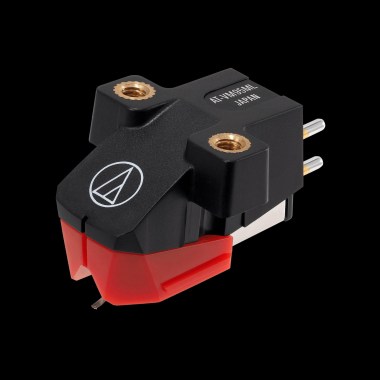

This VM95 Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli. +3 Features VM Series dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus Aluminum cantilever Durable low-resonance polymer housing Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required Compatible with any AT-VMN95 replacement stylus Specifications Cartridge & Stylus Frequency Response Channel Separation Vertical Tracking Angle Vertical Tracking Force Stylus Construction Recommended Load Impedance Coil Impedance DC Resistance Coil Inductance Output Voltage Output Channel Balance Stylus Shape Cantilever Static Compliance Dynamic Compliance Mounting Cartridge Weight Dimensions Accessories Included Model Mounting Feature Recommended Load Capacitance Replacement Stylus Stylus Size Type Weight Wire Used for Coil

20-25,000 Hz

23 (dB at 1 kHz)

23°

1.8-2.2 g (2.0 g standard)

Nude square shank

47,000 ohms

3.3 k ohms (1 kHz)

485 ohms

550 mH (1 kHz)

3.5 mV (1 kHz, 5 cm/sec.)

1.5 dB (1 kHz)

2.2 x 0.12 mil Microlinear

Aluminum pipe

20 x 10 – 6 cm / dyne

10 x 10 – 6 cm / dyne (100 Hz)

Half-inch

6.1g

17.2 mm (0.68") H ? 18.9 mm (0.74") W ? 28.3 mm (1.20") D

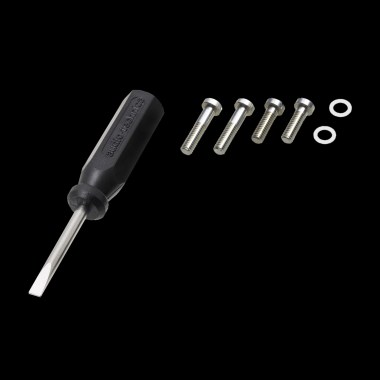

Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver

AT-VM95ML

Half-inch mount

100 to 200 pF

AT-VMN95ML

2.2 x 0.12 mil

VM Stereo Dual Magnet

6.1 g (0.22 oz)

T.P. Copper
