Audio-Technica AT-XP5/H

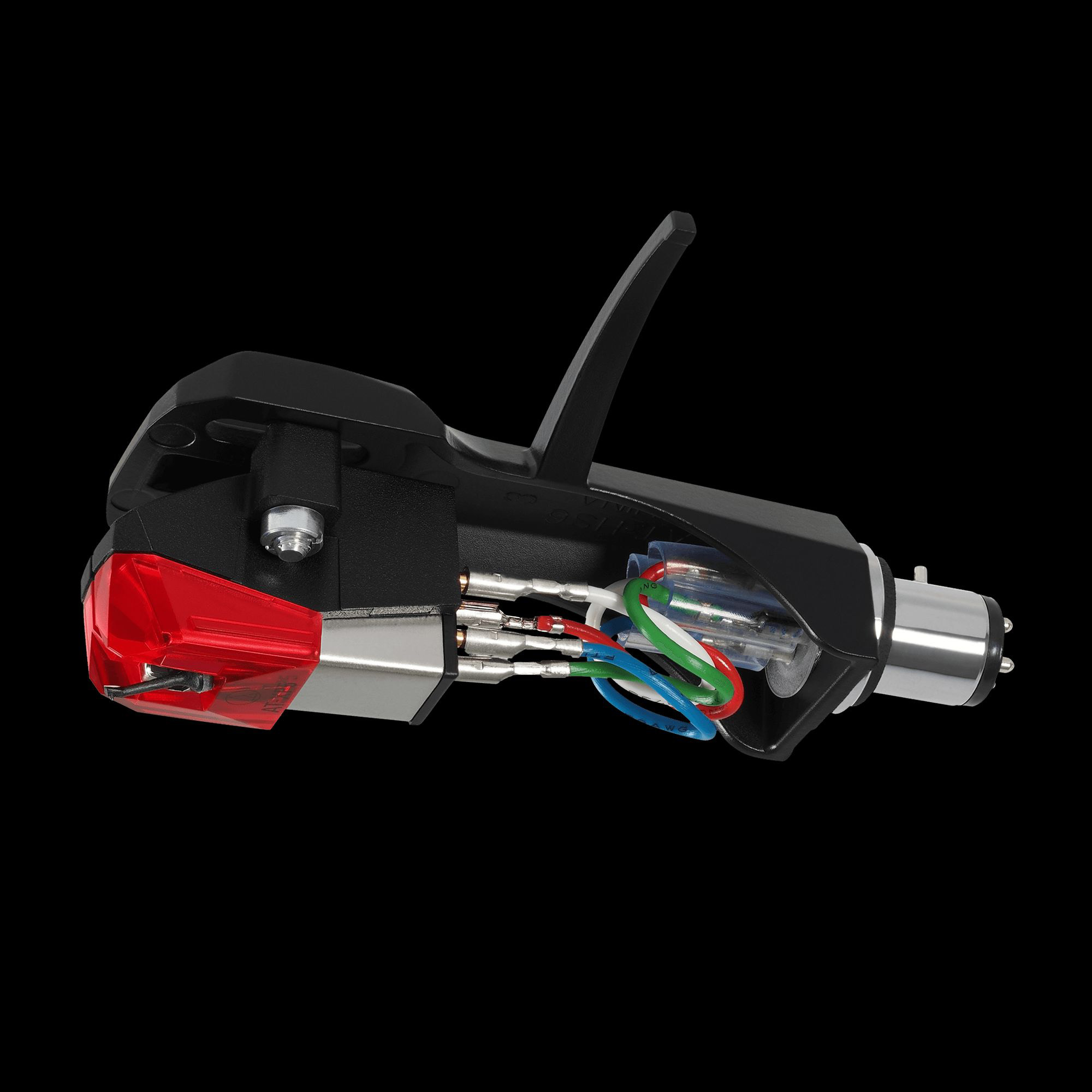

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell. +2 Features 0.3 x 0.7 mil elliptical bonded stylus tip Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body 5.5 mV high-level output Tracking force of 2.0 to 4.0 grams (3.0 grams standard) Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking Design offers maximum visibility of the stylus tip Great tracking and channel separation for high-fidelity sound Universal ?"-mount headshell for 4-pin turntable cartridges Specifications Cartridge & Stylus Frequency Response Channel Separation Vertical Tracking Angle Stylus Construction Recommended Load Impedance Coil Impedance DC Resistance Coil Inductance Output Voltage Output Channel Balance Stylus Shape Cantilever Static Compliance Dynamic Compliance Mounting Cartridge Weight Dimensions Accessories Included Model Mounting Feature Recommended Load Capacitance Replacement Stylus Stylus Size Weight

20-18,000 Hz

20 (dB at 1 kHz)

20°

Bonded round shank

47,000 ohms

6.7 k ohms (1 kHz)

990 ohms

1.0 H (1 kHz)

5.5 mV (1 kHz, 5 cm/sec.)

2.0 dB (1 kHz)

0.3 x 0.7 mil elliptical

Carbon fiber-reinforced ABS

20 x 10 – 6 cm / dyne

6.0 x 10 – 6 cm / dyne (100 Hz)

Half-inch

15.6g

cartridge 17.2 mm (0.68") H ? 17.8 mm (0.67") W ? 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H ? 21.4 mm (0.84") W ? 62.4 mm (2.46") D

Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver

AT-XP5/H

Half-inch mount

100 to 200 pF

ATN-XP5

0.3 x 0.7 mil

cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)
