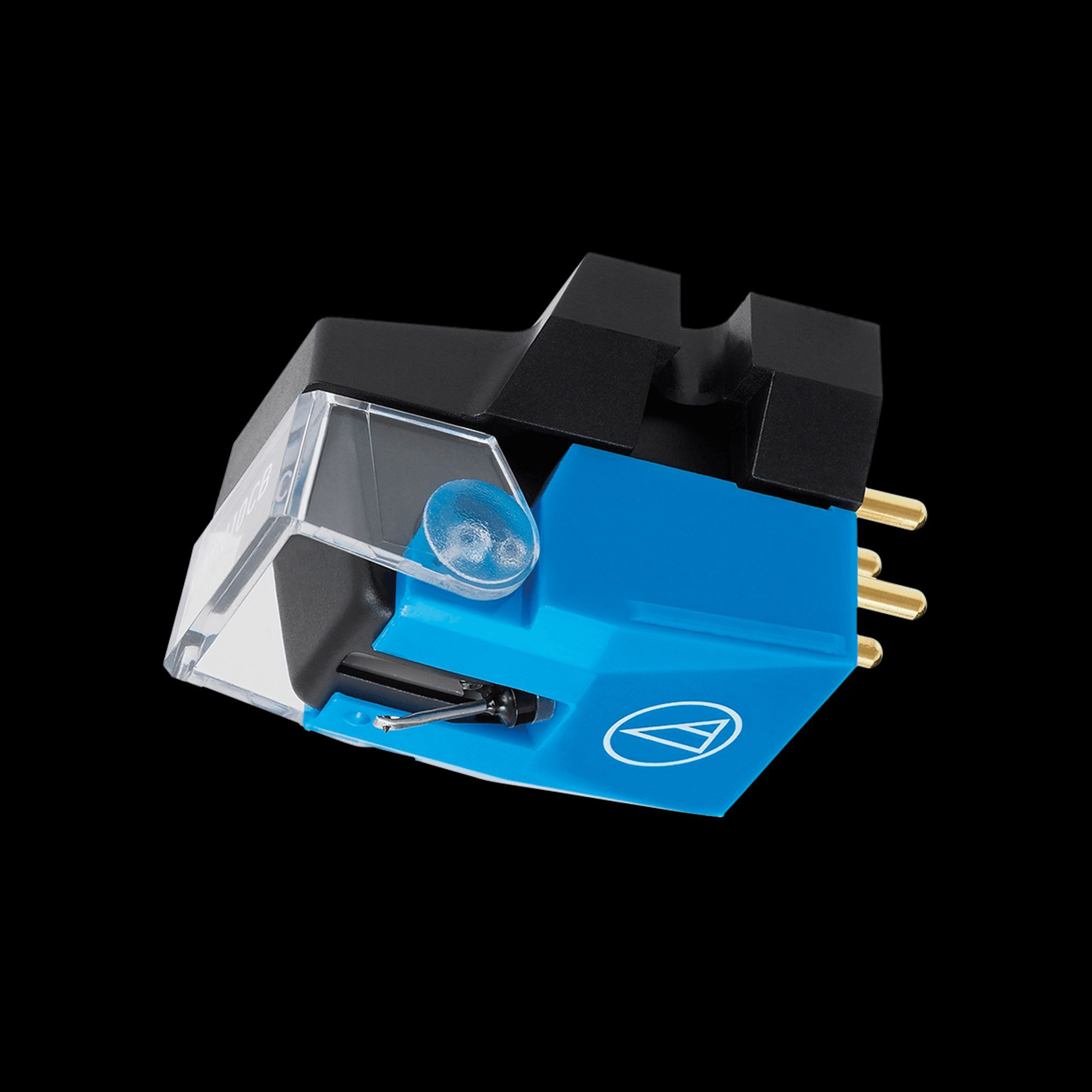

Audio-Technica VM510CB

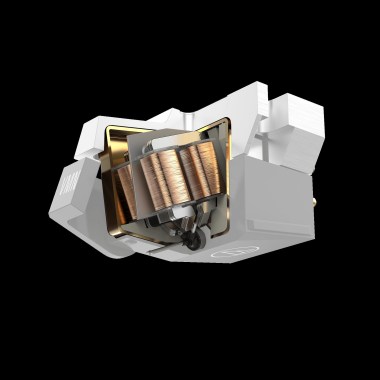

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware. Features VM dual magnet cartridge with 0.6 mil conical stylus Aluminum cantilever Paratoroidal coils improve generating efficiency Center shield plate between the left and right channels reduces crosstalk Durable low-resonance polymer housing Specifications Cartridge & Stylus Frequency Response Channel Separation Vertical Tracking Angle Vertical Tracking Force Stylus Construction Recommended Load Impedance Coil Impedance DC Resistance Coil Inductance Output Voltage Output Channel Balance Stylus Shape Cantilever Static Compliance Dynamic Compliance Mounting Dimensions Accessories Included Mounting Feature Recommended Load Capacitance Replacement Stylus Stylus Size Type Weight

20-20,000 Hz

25 dB (1 kHz)

23°

1.8-2.2 g (2.0 g standard)

Bonded round shank

47,000 ohms

2,700 ohms (1 kHz)

800 ohms

460 mH (1 kHz)

5.0 mV (at 1 kHz, 5 cm/sec)

1.5 dB (1 kHz)

0.6 mil conical

Aluminum pipe

35 x 10-6 cm/dyne

8 x 10-6 cm/dyne (100 Hz)

Half-inch

17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

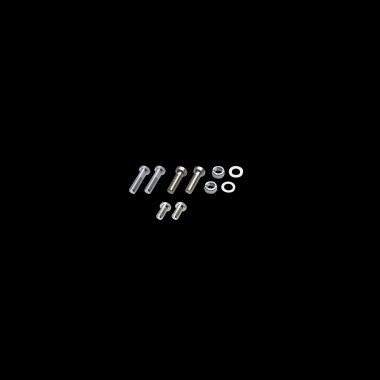

Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts

Half-inch mount

100-200 pF

VMN10CB

0.6 mil

VM Type

6.4 g (0.2 oz)
