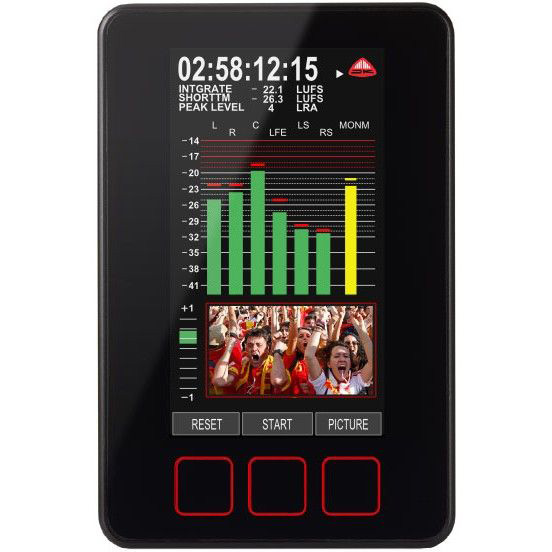

DK-Technologies DK5

Hit your Audio and Loudness sweet-spot with outstanding precision and instant overview – no matter the standard or target.

The DK Meter range is the perfect and surprisingly affordable ‘One box solution’ for any high resolution metering application counting; broadcast, film & post production as well as live transmission and recording.

Whether you want instant readouts and overview of a few key target levels, phase and channel correlation or detailed Loudness logging, DK Meter is the answer.

• Bargraphs or Moving Coil – Your choice of metering tool
• JellyFish & StarFish Channel and Phase relations – Phase Security
• Clear Loudness metering & readout – Loudness conformity at a glance
• Real time True Peak PPM – Optimized level with no hidden ‘overs’
• Compliant with all major loudness standards – Always hit your target
• Loudness and True Peak Logging - Document, Review & Analyse
• SMPTE Reader – Readout and Log against Time code
• FFT Spectrum Analysis – See and secure your audio from any angle
• Compact design (132 x 88 x 18mm) – Easy placement and Installation
• Flexible and User definable setup – Personalize to your workflow
• SDI 3G, AES/EBU, Analogue – Choose the input format for you

DK 5 3g SDI Multi Channel Features:

• I/O: 3G SDI, 6 ch. AES/EBU, Stereo Analogue
• Display Channels: 16
• Screen Size: 4.3"
• Software: All Audio & Loudness tools, Picture Preview, SDI Eyewidth
• Recommended for: 3G SDI Stereo & Multi channel Applications
