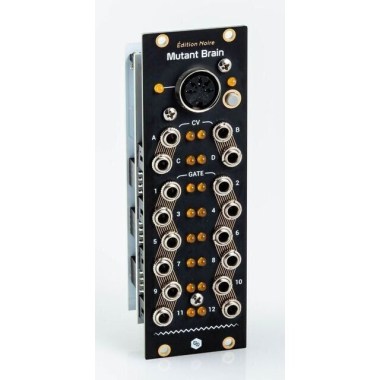

Erica Synths Mutant Brain

Interface Module

Hexinverter Mutant Brain is an interface module for modular synthesizers in Eurorack format. By connecting an ultra flexible MIDI to Trigger, Sync, Polyphonic CV and Gate and with 16 Eurorack compatible outputs, Brains forms the central nervous system of your modular system and that with slim 8TE.
U
niversal configuration

The four CV outputs and 12 Gate/Trigger outputs can be configured according to the application: Triggers, gates, clock divisions, sync signals, polyphonic keyboard play with velocity, sequencer transport, LFO e.t.c.

Simple configuration

Simply assign the required outputs in the Mutant Brain Surgery App and send the MIDI SysEx file to the module. A download pack with extensive preconfigurations for controlling current sequencers and drum computers is available free of charge on the Hexinverter homepage. In this way, you transform sequencers and drum computers into powerful control units for modular systems.

Hexinverter Mutant Brain at a glance:

Four CV outputs (0 to 8V) for:

Notes (Mono or Polyphon, V/Oct or V/Hz)
Pitchbend, Velocity or Aftertouch
MIDI CC values (LFOs, modulations, etc.)
Fixed voltage values

12 gate outputs (0 to 12V) for:

Sheet Music Gates and Triggers
Drum Trigger, Retrigger
MIDI Transport (Start, Stop, Run, Reset)
MIDI Clock Impulse (divisions)
CC values below/above threshold value
Each gate has a trigger length adjustable between one and 120 milliseconds.
