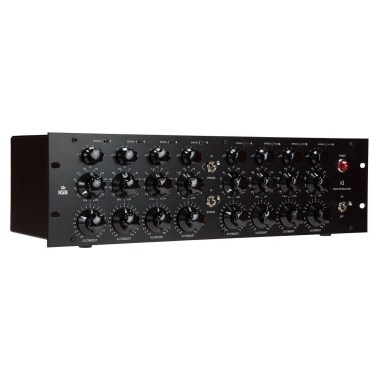

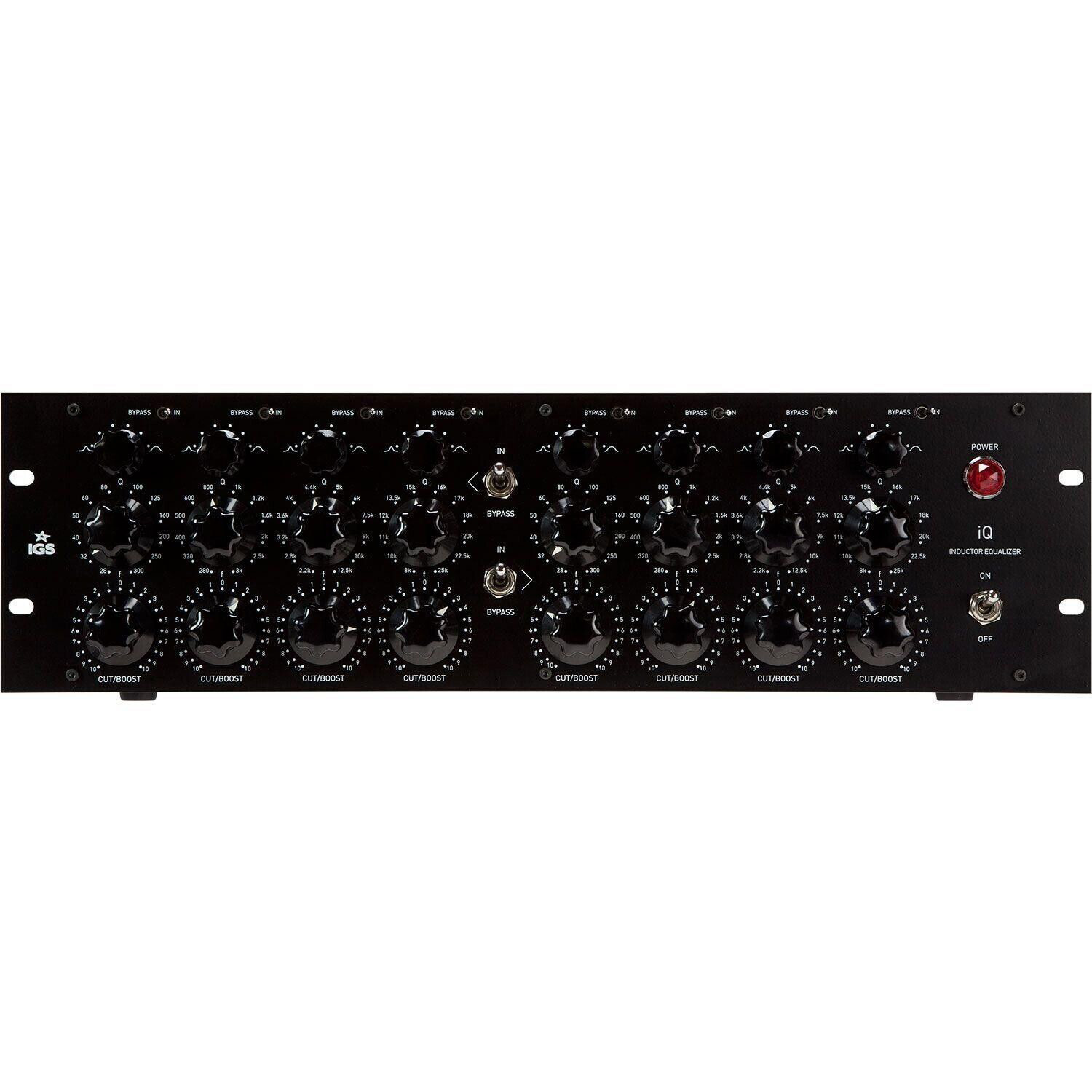

IGS Audio iQ. Inductor Dual-Mono Parametric Equalizer

The IGS iQ. Inductor Equalizer is a modern application of the noble sound of analog equalizers. This very precise, parametric equalizer works great on every stage of production. It can add marvelous color to the signal, while maintaining the whole character of the original sound. This is a unique phenomenon possible only with analog processing. As opposed to digital eq it maintains neutrality and clarity on every setting. The simultaneous boosting and cutting of similar frequencies are the core secret of this device.

This is the typical effect of analog filters in the audio path. Most of the sound correction is in micro-manipulation. The frequency range is divided into 4 bands: Sub, Bass, Mid, High. In every band the frequency and boost/cut level can be set.

The frequency range is divided into 4 bands: Sub, Bass, Mid, High, allowing you to control the frequency, boost/cut, bandwidth and bypass of each band! Now imagine two channels of that!

• Boost/Cut Range: ?10 dB
• Hardwire bypass: Yes
• Q factor: 0.3 - 6
• Input impedance (balanced): 10 kOhm
• Output impedance (balanced): 600 Ohm
• Operating level: +4 dBu
• Max input level: +22 dBu
• Max output level: +26 dBu
• Frequency response: 20 Hz - 20 kHz (?0.1 dB)
• Crosstalk: 100 dB
• Voltage: 115/230V, 60/50 Hz
• Power consumption: 25W
• Power supply: internal
