JDK AUDIO by API R20

The JDK Audio R20 is a dual channel, high quality microphone preamp, designed from the ground up by API's design team to offer a versatile high quality input for microphones as well as instruments.

Each channel features both a mic and an instrument input, with switched phantom power, phase, and pad. Metering is traditional analog VU.

Features:

• Dual Mic Preamplifiers with 54 dB of gain
• Custom analog VU meters for monitoring output level
• Front panel, high-impedance instrument input with 45 dB of gain
• Peak indicator
• Pad switch attenuates the microphone signal by 20 dB, or the instrument signal by 10 dB
• Switchable 48v Phantom power
• Low distortion, low noise circuitry
• Fully balanced output, both 1/4" and XLR

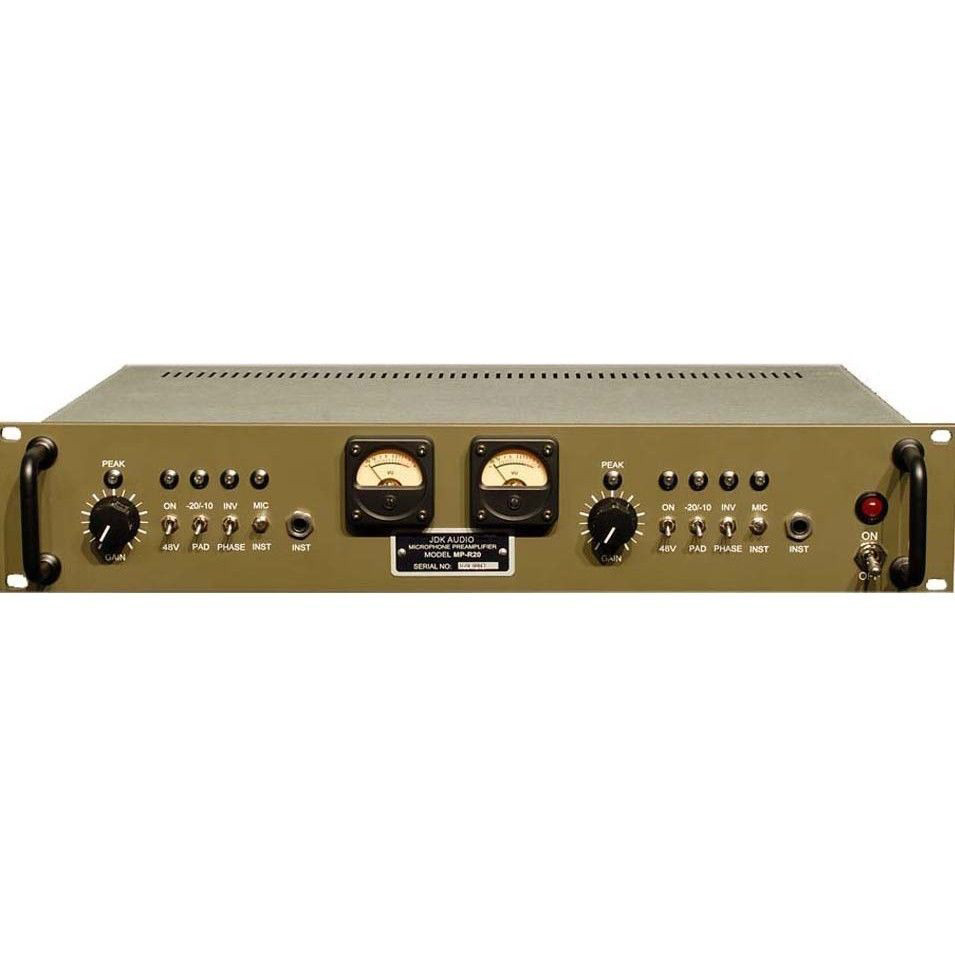

The MP-R20 provides 2 channels of premium analog microphone pre-amplification designed to provide a low noise, solid front end for all audio applications. Meticulously detailed and solidly constructed, the R20 features custom analog VU meters and hands-on analog control of the gain level. Individual toggle switches control the selection of 48v, polarity, pad and a mic/instrument switch.
