JDK AUDIO by API R24

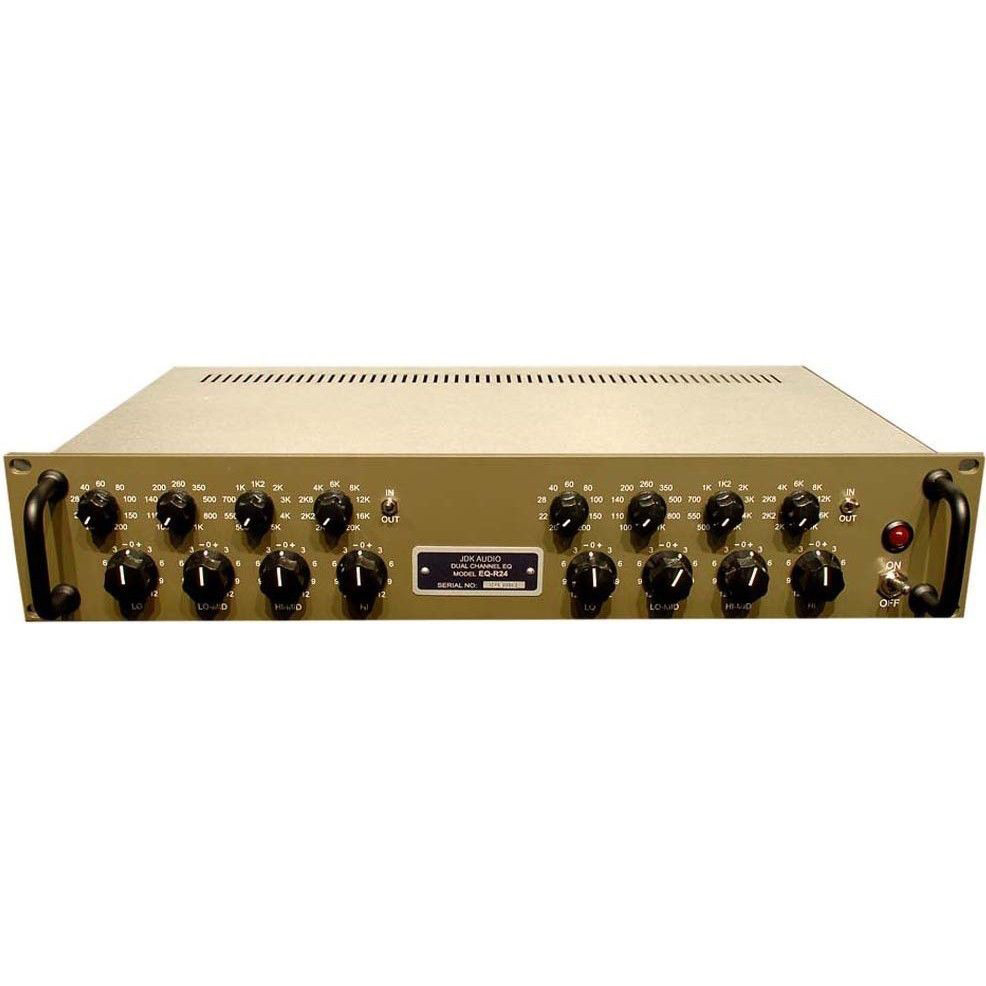

The JDK Audio R24 Dual Channel, 4-band equalizer, features two identical channels of equalization in a rack mounted unit with internal power supply. The eq features continuously variable adjustment of frequency and gain using individual controls.

Features:

• 4 bands of equalization modeled after the classic APSI model 562 EQ
• Each band offers continuously variable control of frequency and gain, using separate knobs
• 12 dB of boost/cut per band
• All 4 bands are peak/dipping parametric configuration
• Custom transformer balanced output

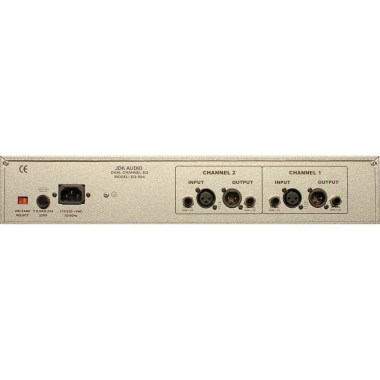

• Fully balanced 1/4" and XLR input and output
• High headroom +24 dB clip level

The EQ-R24 offers two channels of professional signal equalization. Modeled after the circuitry of classic high end EQ's, the R24 delivers an affordable combination of rugged construction and solid performance. EQ in and out are controlled by classic toggle switches, with gain and frequency selection accessed using individual control knobs.
