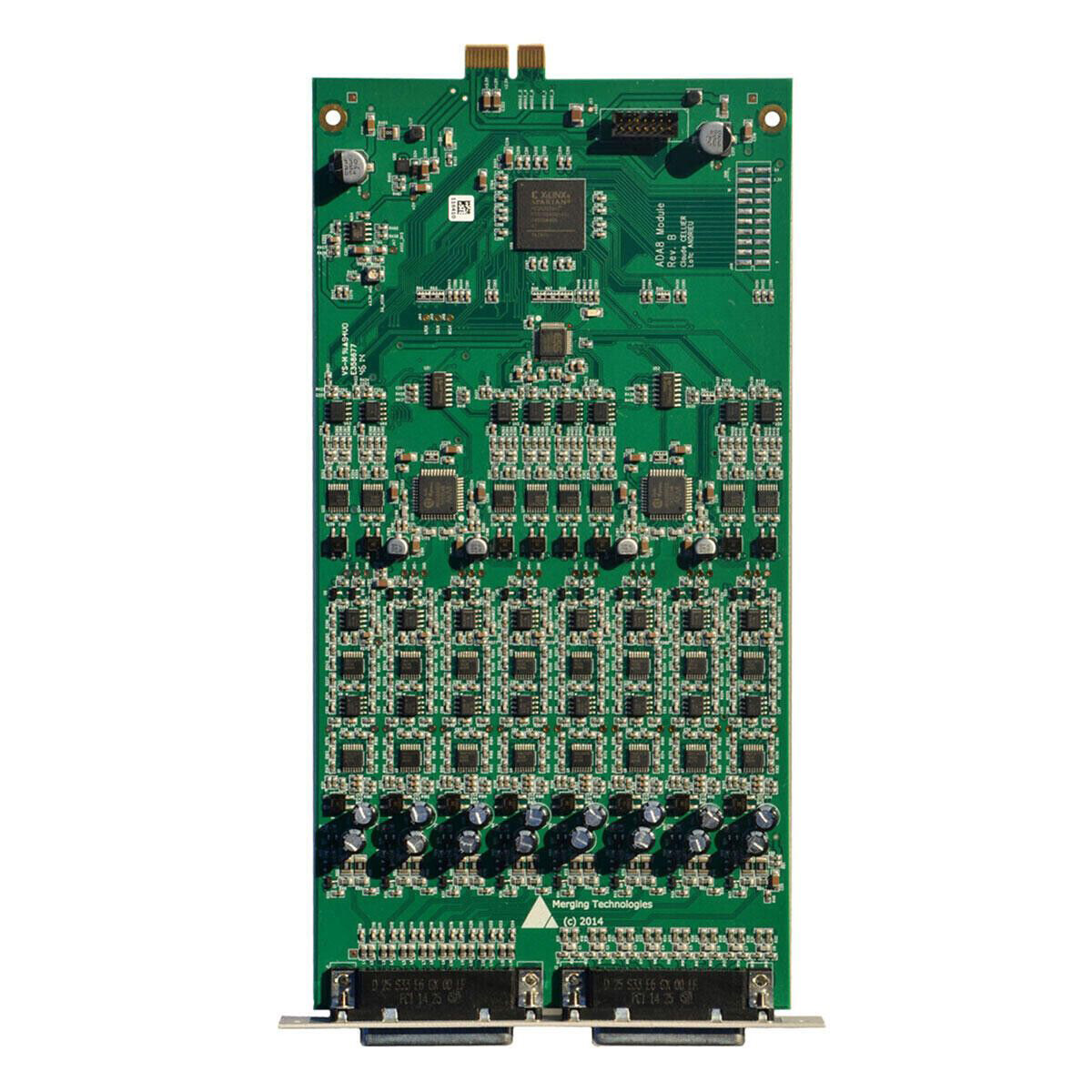

Merging Technologies Horus/Hapi Module IOM-H-ADA8S

The Merging Technologies ADA8S Module for Horus/HAPI has broken a new barriers in terms of compactness as well as ultra-low power consumption without compromising on the audio quality. These cards work at sampling rates up to 192 kHz.

Using those combined 8 channel Mic/Line In and Line Out cards allow a Horus to be configured with up to 48 channels of Analog In/Out and a Hapi to be configured with up to 16 channels of Analog In/Out.

• 8x exceptionally transparent, Swiss designed pre-amplifiers
• Remote/Local switch to Line Level on a per channel basis
• Completely accessible remotely for all parameter changes
• Phantom Power/Phase/Low Cut/Impedance switchable per channel
• Dynamic range of 120dB (A-weighted, typ) on the Line inputs
• Auto-mute circuitry for ?no-pop? power cycling
• Digitally controlled output trims for line up procedures
• Dynamic range of 123dB (A-weighted, typ.) on the Line outputs
