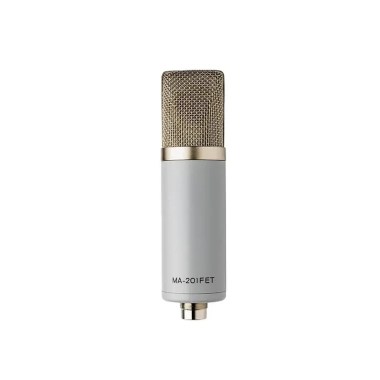

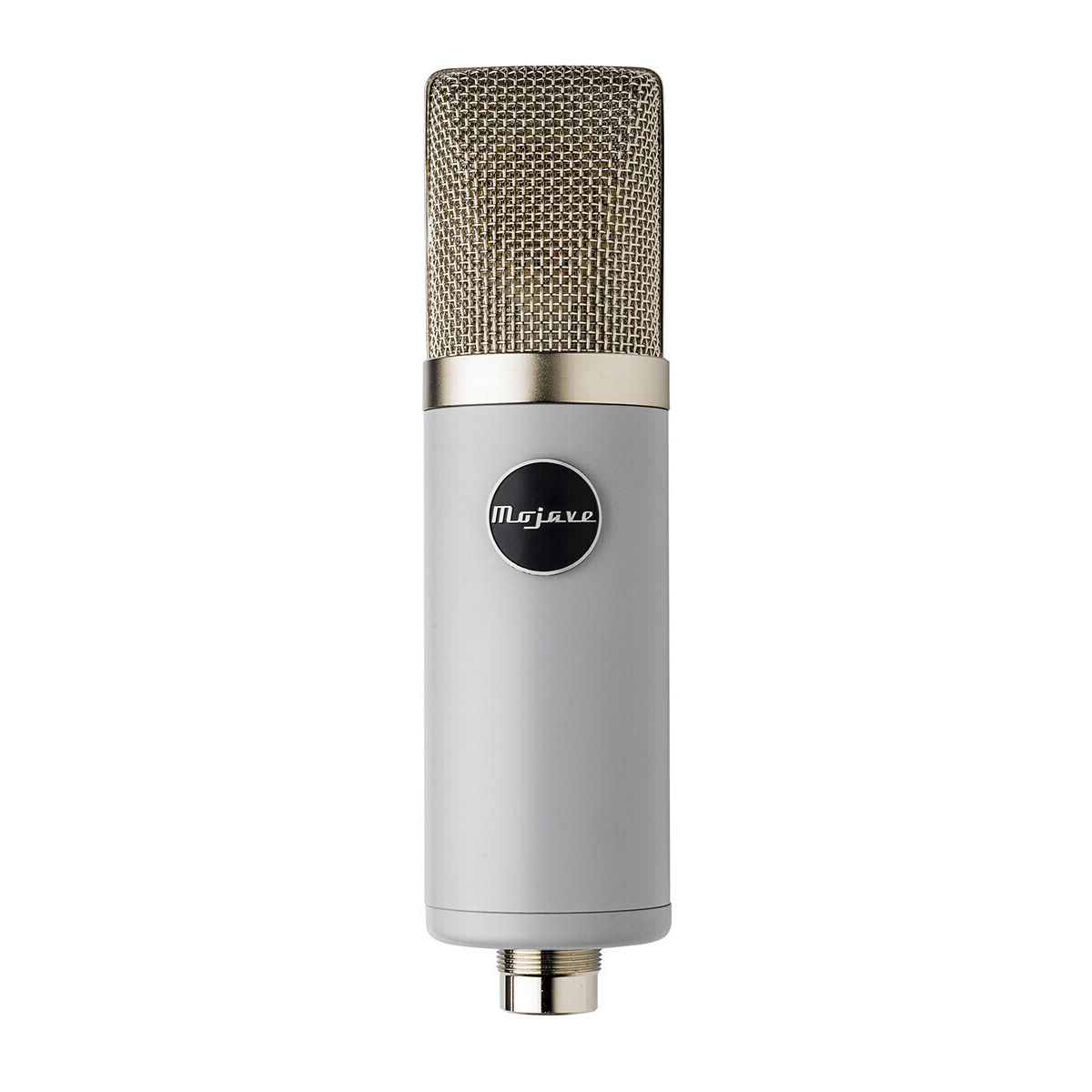

Mojave Audio MA-201fetVG

The MA-201fetVG is a large diaphragm, phantom-powered, solid-state condenser microphone with a fixed cardioid pattern. With its roots in a lineage of microphone designs by David Royer, the MA-201fetVG gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.

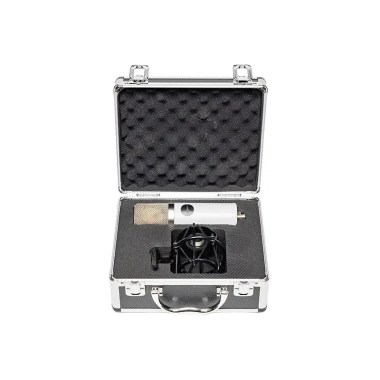

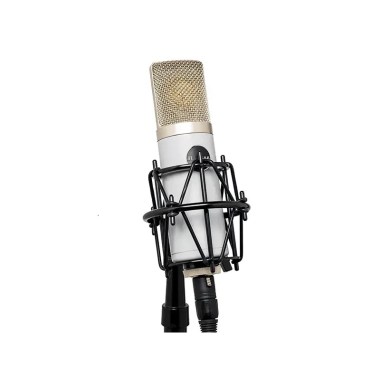

Utilizing a 3-micron, single-sided, gold-sputtered capsule, high-quality custom-wound audio transformer, military-grade FET and custom designed low-noise resistors, the MA-201fetVG performs at a level reminiscent of some of the best loved classic condenser microphones. Each MA-201fetVG microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.

• TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor – double diaphragm.
• DIAPHRAGM: 1-inch diameter, gold sputtered
• DIAPHRAGM THICKNESS: 3 microns
• POLAR PATTERN: cardioid
• FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at “flat” setting of bass cut
  switch. Bass cut switch provides 6 dB per octave attenuation below
  100 Hertz in “cut” setting
• SENSITIVITY: -40.5 dB, re. 1V/pa
• MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.
• DISTORTION: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off
  < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on
• SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)
• PAD: 15 dB
• BASS CUT: 6 dB per octave below 100 hertz.
• IMPEDANCE: 550 ohms, transformer balanced
• POWERING: 48VDC phantom power; current 1.2 mA
• DIMENSIONS AND WEIGHT:
  Carrying case with microphone, shock mount: 10? x 9? x 4.5?, 4 lbs.
  Microphone: 7 5/8? X 2? (194mm x 51mm), 1 lb. (0.45Kg)
