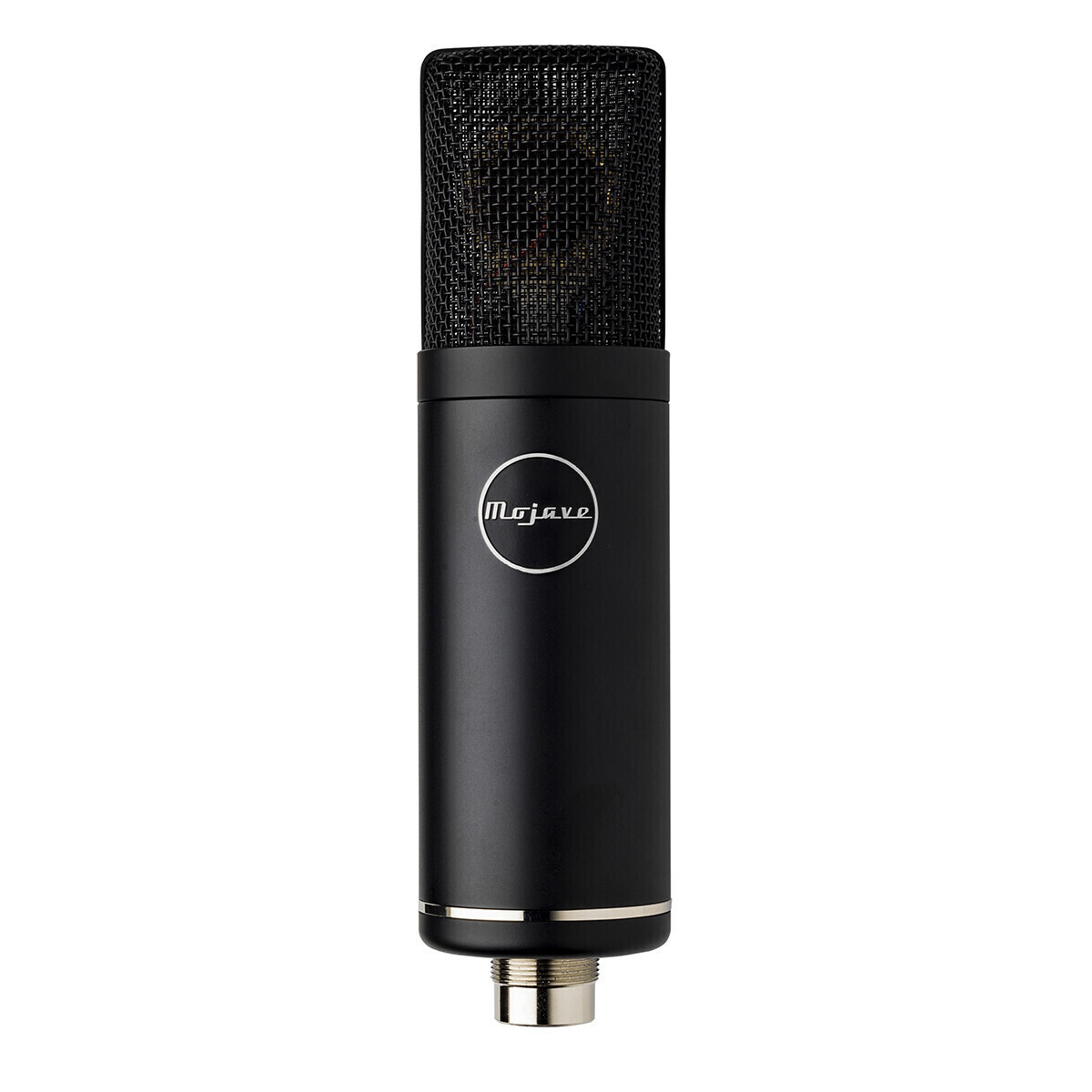

Mojave Audio MA-50BK

The challenge? Create a transformerless microphone circuit without
the inherent problems found in transformerless microphones. TECHNICAL
GRAMMY® Award-winning microphone designer David Royer has
created a thoroughly modern microphone that rises to that challenge:
the new MA-50BLK. Designed to produce the clarity and realism that
Mojave microphones are known for, at an entry level price, the MA-50BLK
outperforms well-known transformerless mics costing many times
more.

• TRANSDUCER TYPE: Externally polarized pressure gradient capacitor
• DIAPHRAGM: 1-inch diameter, gold sputtered
• DIAPHRAGM THICKNESS: 3-microns
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 20 Hz- 20 kHz, + 3 dB
• SENSITIVITY: -40 dB re. 1V/pa
• MAXIMUM SPL: 125 dB
• DISTORTION: <0.5% @140 dB SPL
• SELF NOISE: Better than 16 dB (A weighted)
• IMPEDANCE: <100 ohms
• RECOMMENDED LOAD: 1500 ohms or higher
• POWERING: 48VDC phantom power; current 2 mA.
• DIMENSIONS AND WEIGHT:

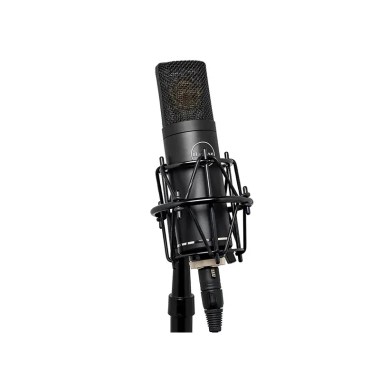

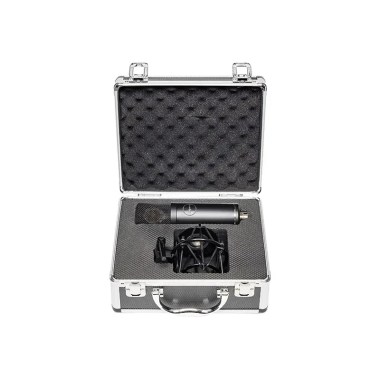

  Carrying case with microphone, shock mount: 10” x 9” x 4.5”, 4 lbs.
  Microphone: 7 5/8” X 2” (194mm x 51mm), 1 lb. (0.45Kg)
