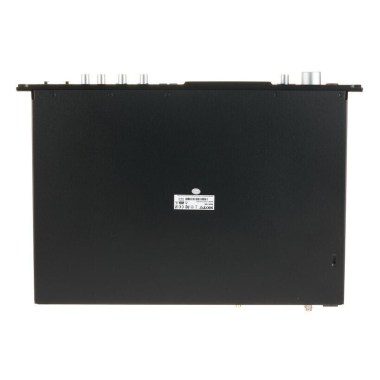

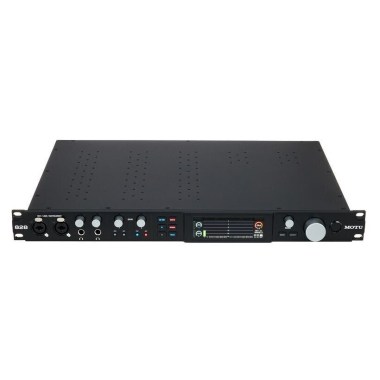

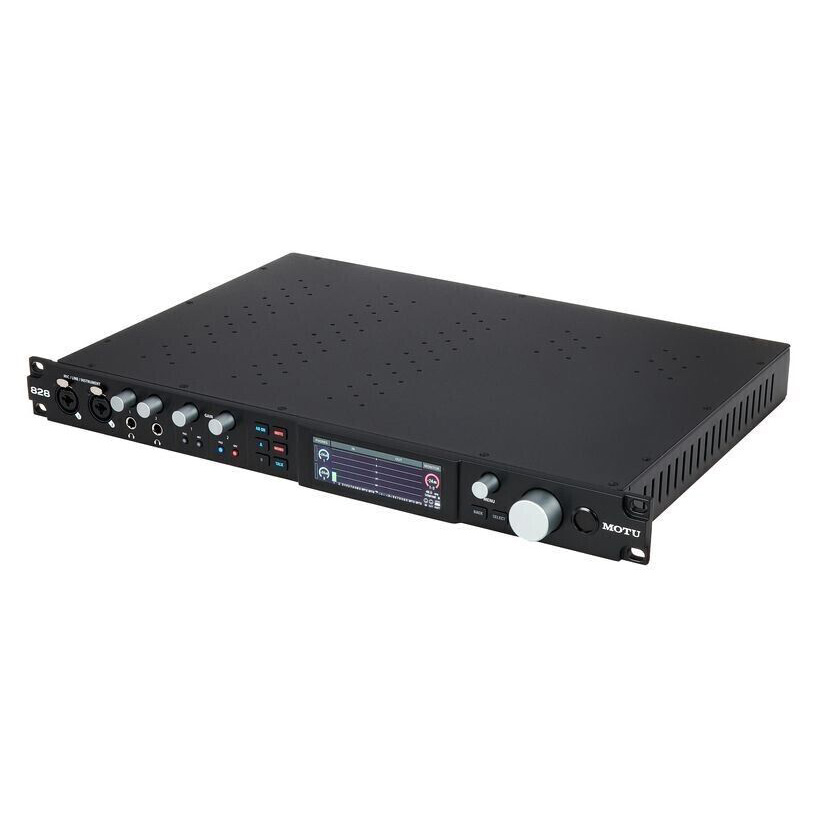

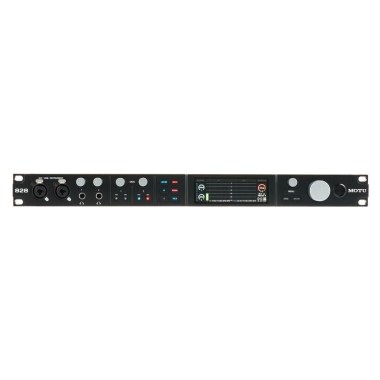

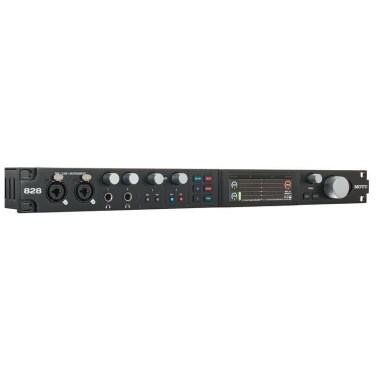

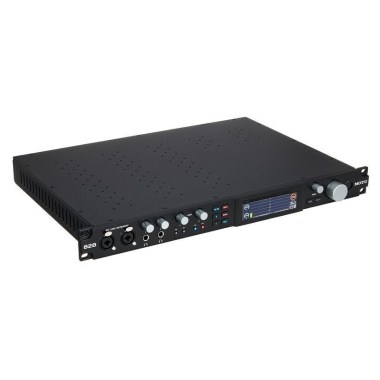

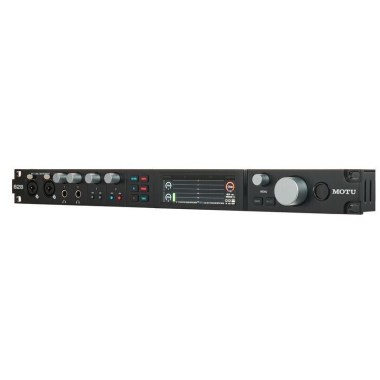

MOTU 828 New 2024

• Resolution: 24 bit / 192 kHz
• ESS Sabre32 Ultra DAC-Technology
• DSP-controlled digital mixer with 24 inputs, 8 stereo busses and DSP effects (reverb, 4-band EQ, gate & compressor)
• High-resolution (480 x 128) 3.9" LCD colour display
• Dynamic range line inputs: 120 dB
• THD+N line inputs: -114 dB
• Equivalent input noise microphone preamplifier: -129 dB
• Microphone preamplifier with +74 dB gain
• Dynamic range line outputs: 125 dB
• THD+N line outputs: -114 dB
• 48V phantom power, -20 dB pad, phase flip, remote control and dedicated inserts per microphone input
• 60 Simultaneously usable audio channels (28 inputs and 32 outputs)
• Dimensions (W x D x H): 482 x 311 x 44 mm
• Weight: 5 kg
• System requirements Interface: Windows 10 or later, Mac OSX 10.13 or later

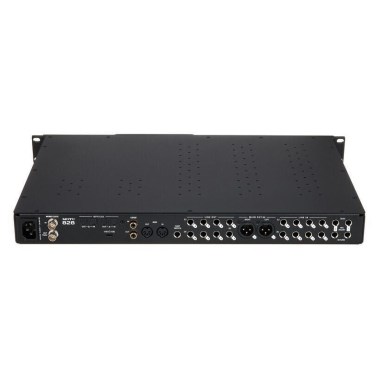

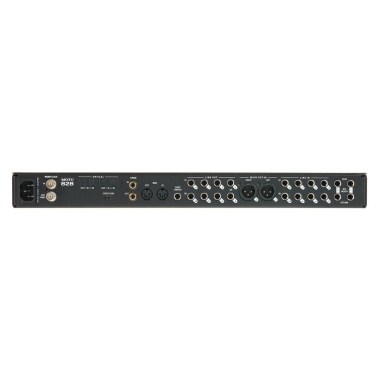

Connections:

• 2 x Mic / Instrument / Line inputs: XLR / jack 6.3 mm combo
• 8 Line inputs: 6.3 mm jack, balanced
• 8 DC-coupled line outputs: 6.3 mm jack balanced
• 2 x XLR Main out
• 2 x ADAT input and output
• Coaxial S/PDIF (24-bit 96kHz)
• 2 x Send/return 6.3 mm jack balanced
• MIDI input and output
• Word clock input and output: BNC
• 2 Headphone outputs
• Foot switch input: 6.3 mm jack
• USB-C connection (compatible with USB type A)
