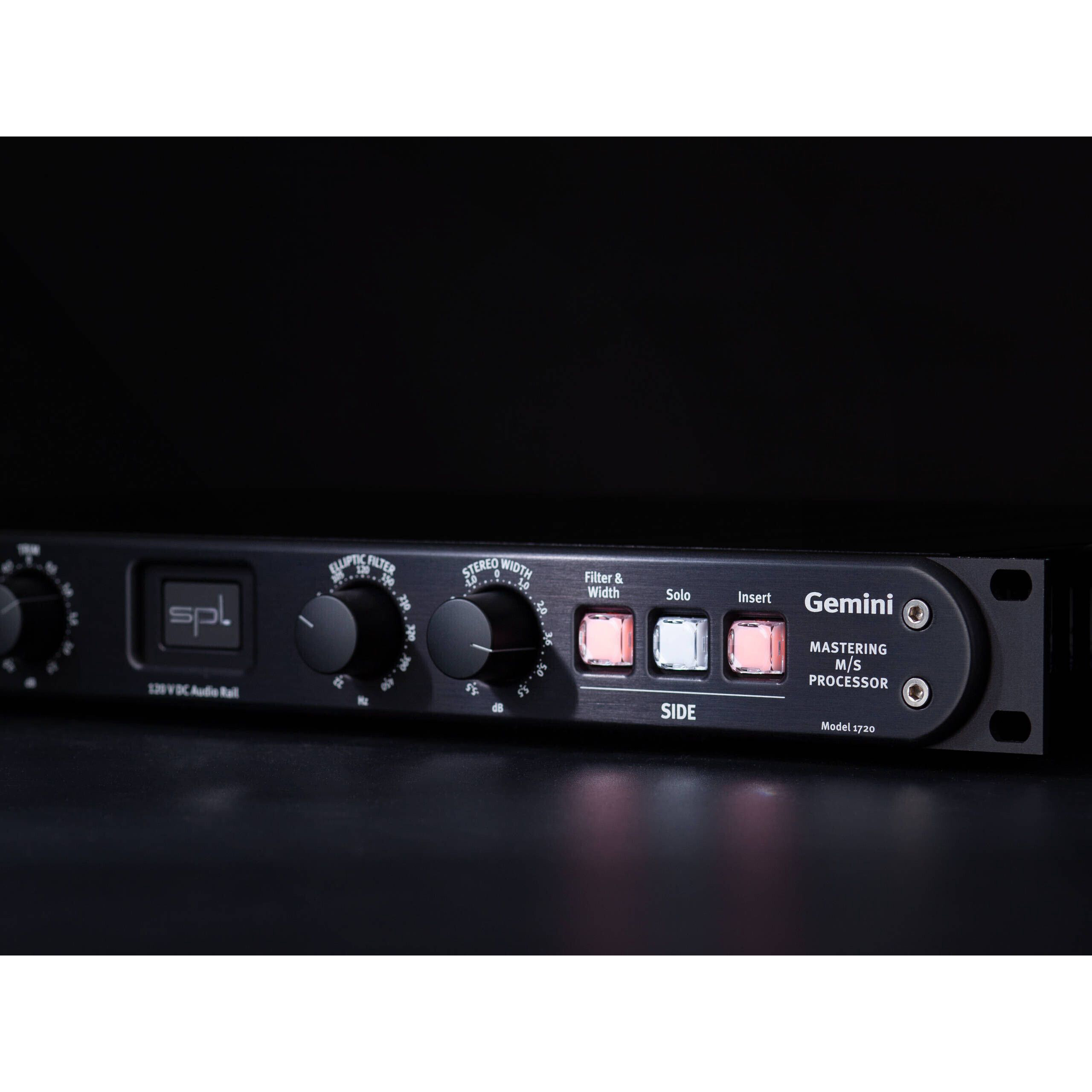

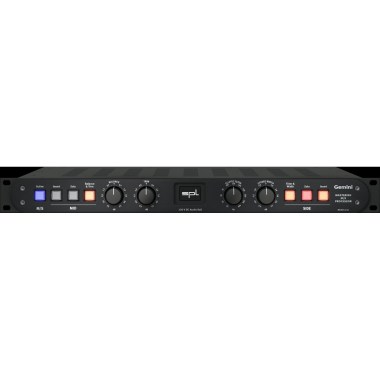

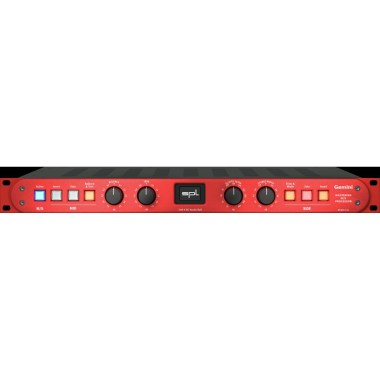

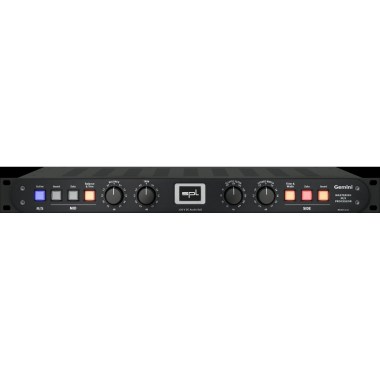

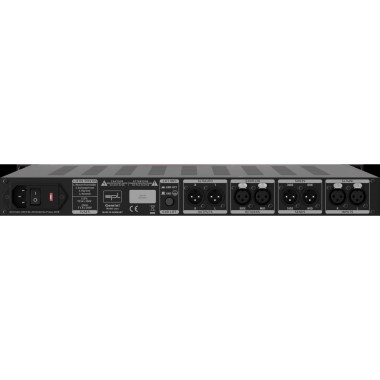

SPL Gemini

Gemini is the first mid/side processor in 120V technology. In mastering, M/S processing is often the best way to get targeted access to individual elements of a mix.

The decomposition of the stereo signal in mid (voice, snare, bass …) and side (guitars, pads, cymbals …) allows their separate processing.

The center signal (Mid) is the sum of the left and right channel of the stereo signal (L+R), i.e. the “in phase” part of the stereo signal.

The side signal (Side) is the difference of the left and right channels of the stereo signal (L-R), i.e. the “out-of-phase” part of the stereo signal.

Gemini can also be used to enlarge or reduce the stereo image. An elliptical filter for shifting the low frequency component from the side to the mid is also on board.

When the M/S button is activated, the input signal (L/R stereo) is split into a mid and side signals.

The exact center position can be adjusted with the Balance control and the exact level with the Trim control. Both functions are switchable to be in the signal path only when in use.

Exclusive monitoring of the center is possible when the solo function is activated.

Processors can be inserted to process the mid signal and activated with the Insert button.A
