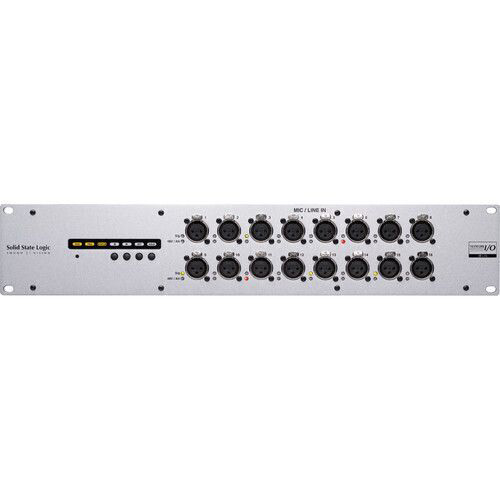

SSL SB i16 Stagebox (2U)

The SSL SB i16 offers sixteen mic/line inputs. It features a pair of redundant RJ45 Dante network connections, a pair of network extension connections, GPIO connectivity and redundant PSU’s. They have individual signal present, phantom power and local attention LEDs to provide intuitive front panel feedback.

It features inbuilt limiters and SSL’s innovative AutoPad system that automatically applies a Pad according to gain setting. The AutoPad is applied if the gain is set at a low value that would require a pad to achieve making the entire possible mic gain range seamlessly available at all times. An Audition feature provides an automatic gain reduction when checking mic levels, greatly simplifying pre show mic checks for operators of any skill level.
SuperAnalogue mic/line preamp technology for your Dante IP Audio Network

Designed for use on any Broadcast studio floor, venue or recording room, SSL Network I/O Stageboxes allow easy deployment of Mic Pres and Speaker feeds where needed. Network I/O’s plug and play features allow devices to easily be moved, even between locations and retain routing and settings if required. All units can be remote controlled via System T broadcast consoles and control interfaces, SSL Live consoles, and the SSL Remote Stagebox Application.

Features

Interface between studio/stage/recording area and IP audio networks using Dante and AES67
Redundant PSUs and Dante network connections
16 SSL SuperAnalogue Studio Grade preamps
GPIO connectivity - embed tallies across the network
Redundant network extension ports
Clear front panel indication - signal present, phantom power, channel attention
Gain-compensated inputs available to Dante network
Device and parameter ownership assignment to avoid control conflicts
AutoPad - automatically adjusts gain and pad settings to accommodate widest possible range of input signals
Two-speed ball-bearing fan cooling - sufficiently quiet to place on a studio floor
