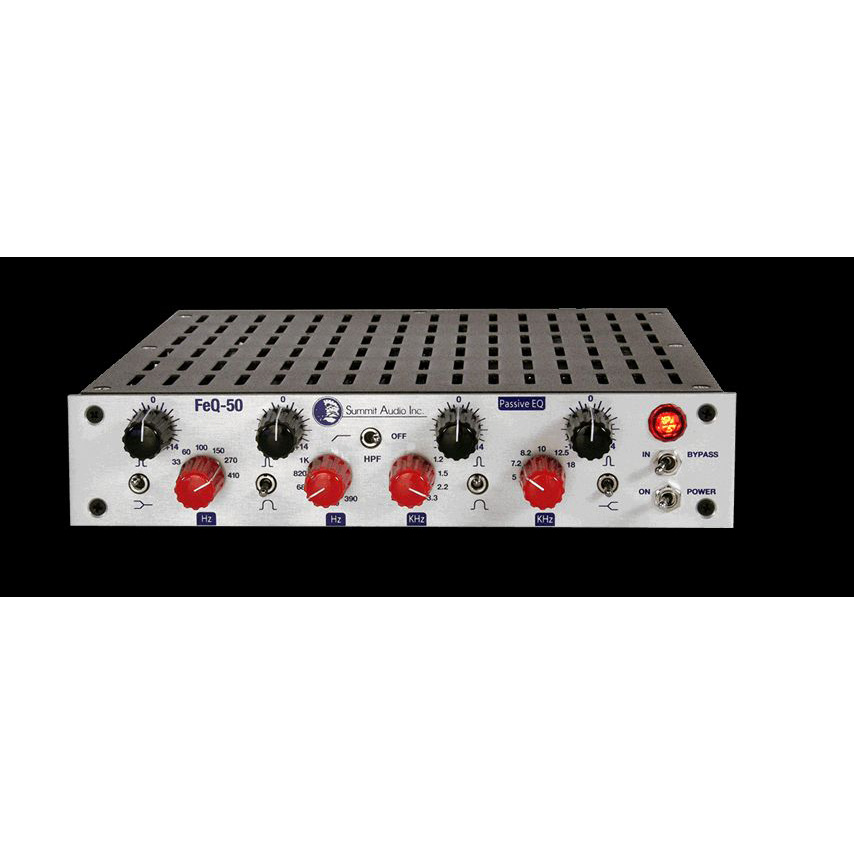

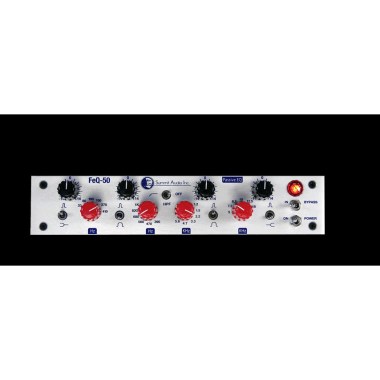

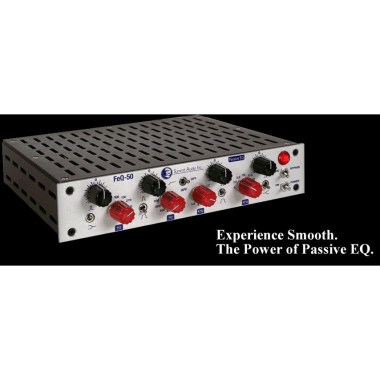

Summit Audio FEQ-50

Ламповый пассивный фильтр и твердотельный 4-полосный эквалайзер,

охватывающий весь аудиодиапазон, с раздельными твердотельным и ламповым выходами.

• Internal AC Supply
• 15 watts, 115, 50 or 60 Hz (USA model)
• Fuse size .5 amp, slo-blo for 100/115 V
• Fuse size .25 amp, slo-blo at 230 V

• Low Band
• The Low EQ band can be set for either a peak or shelving
  response and can boost or cut up to ±14dB.
  frequencies: 33Hz, 60Hz, 100Hz, 150Hz, 270Hz, or 410 Hz.
• Mid Band
• frequencies: 390hz, 470Hz, 560Hz, 680Hz, 820Hz, or 1kHz.
  wide/narrow Q selectable
• High-Mid Band
• frequencies: 1.2 kHz, 1.5 kHz, 2.2 kHz, 3.3 kHz, 4.7 kHz
  and 5.6 kHz. wide/narrow Q selectable
• High-Frequency Cut
• The High-Mid EQ band can be set for either a peak or
  shelving response and can boost or cut up to ±14dB.
  5 kHz, 7.2 kHz, 8.2 kHz, 10 kHz,12.5 kHz, or 18kHz

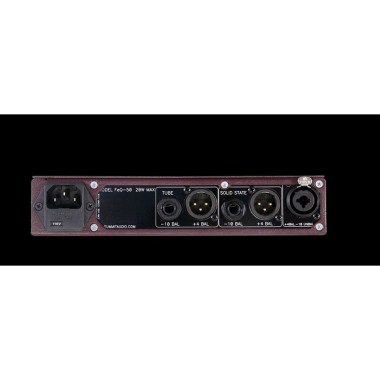

• Line Input: +4 dB XLR Balanced and -10 dB 1/4" unbalanced
• Solid State Outputs: +4 dB male XLR and 1/4" -10 dB balanced
• Tube Outputs: +4 dB male XLR and 1/4" -10 dB balanced

• Max input level: +20 dBu
• Max output level (XLR): +20dBu
• Max gain: +/-14dB per band

• Frequency response:
• Tube:12Hz-100kHz -1dB
• Solid State: 12Hz-100kHz -1dB
• Signal to noise ratio
• Tube: 122dB
• Solid State: 124dB
• THD + Noise:
• Tube: 0.16% +4dB in 20Hz-20kHz
• Solid State: 0.07% +4dB in 20Hz-20kHz
• Vacuum tubes: single 12AX7A

• 3 year limited warranty.
