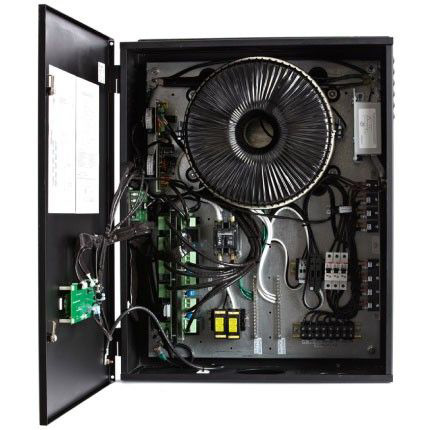

Torus Power WM 75 BAL Wall Mount RM Series

Torus Power Wall Mount (WM) Models provide great flexibility for custom installations, and new construction. Dedicated lines can be run to install the power outlets where needed. Select the appropriate power level – ratings of 45A, 60A, 75A and 100A are available.

Choose the WM model with the features needed; AVR2 models for individually controlled outlets, AVR models for basic monitoring, and RM models for straight power conditioning and protection. (Features are detailed separately.)

WM units are designed for 240 V input. Units can also be supplied with 208 V inputs for 3-phase systems. WM units are provided with 20A output breakers. Alternatively, WM units can be supplied with terminal blocks to enable direct feed to subpanel.

International Models of various voltages and frequencies can also be supplied.

Balanced Inputs Input Voltage also available at 208 V for BAL products feeding from a 3 phase system. Balanced Power input current is drawn at one half the output current capacities. Balanced power input wiring should be installed by a qualified electrician.

• Toroidal Isolation
• Noise Filtering
• High Instantaneous Current Capability
• Series Mode Surge Suppression

• Chassis: Wall mount
• Input: 240 VAC
• Output: 120 VAC
• Input current limiting (fuses): 2 x 40A
• Output current: 75A
• Power VA: 9000
• Frequency: 60 Hz
• Output breakers: 5 x 20A
• Weight: 219 lb
• Dimension (W x D x H): 26.5 x 20.7 x 10.3 in
