White Instruments Paramedic 48-P

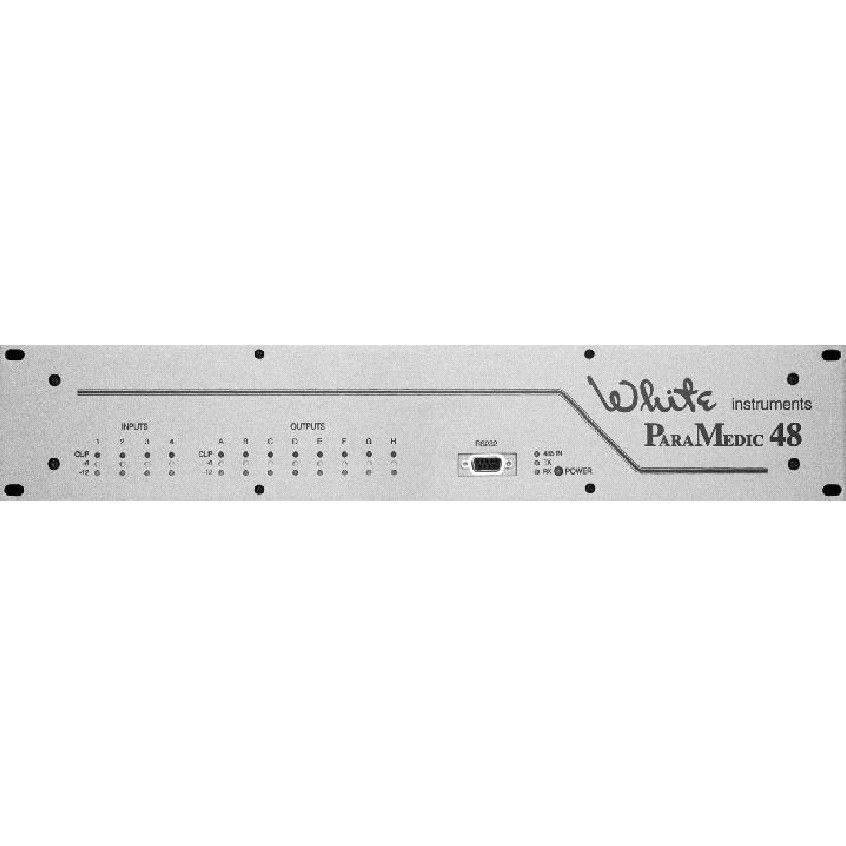

The new Paramedic 48 has no front panel controls for economy and security. All setup and operating functions are conducted from a PC running Windows 95/98/NT4/2000 and White Windows 2 software. The computer/DSP link is generic RS-232 or RS-485 requiring only an industry standard cable. No outboard interface boxes are required. The RS-xxx protocols and nonvolatile E2PROM are new and more efficient. Transfers between the PC and PARAMEDICs as well as memory I/O are 50% faster. A convenient data connector is placed on the frontpanel and paralleled to the rear panel. Up to 250 PARAMEDICs can be daisy-chained (in any mix of models) and controlled from one PC.

Its All in the Timing’ Mixing Matrix: The basic mixer allows the assignment/ mixing of any input to any to all outputs. This new

generation of ParaMedics features an Advanced Mixer giving the user delay and level control within the mixing matrix. Now pinpoint imaging and timing can be achieved in LCR and 5.1 systems by aligning

the center channel loudspeaker with the left and right. Comb filtering can be all but eliminated in the audible frequency range.
