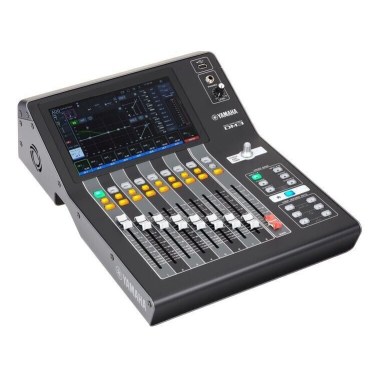

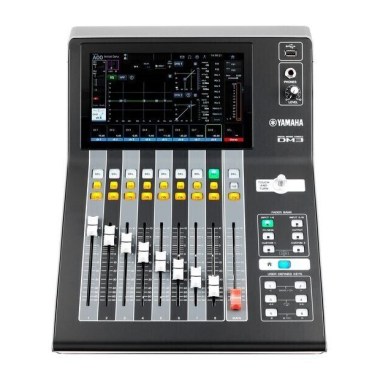

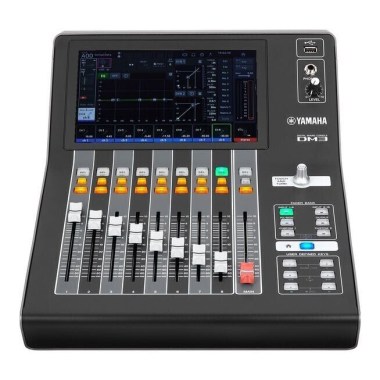

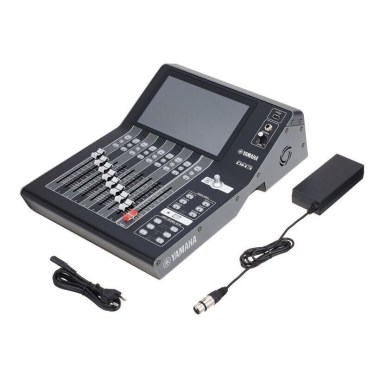

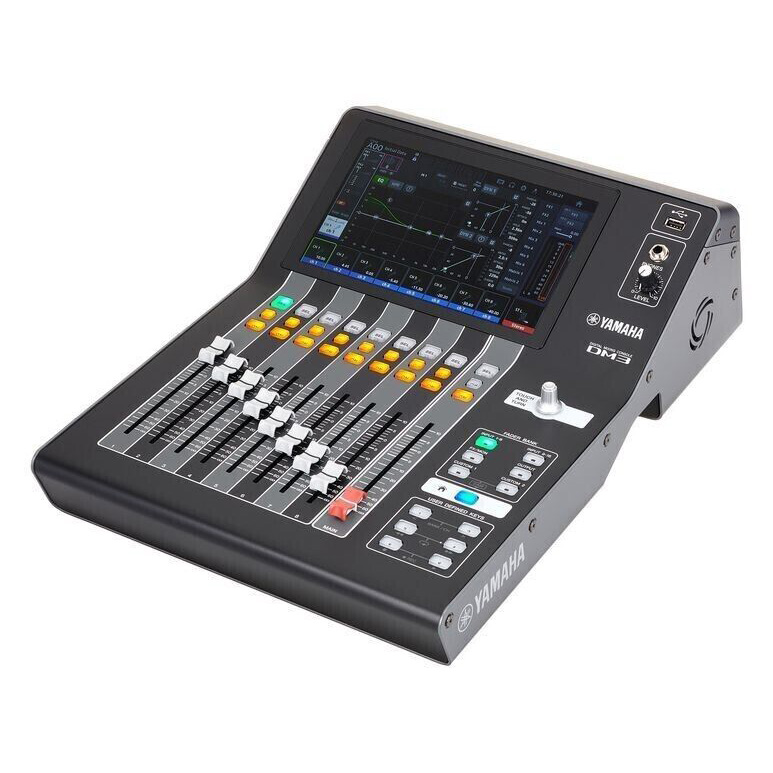

Yamaha DM3S Digital Mixing Console

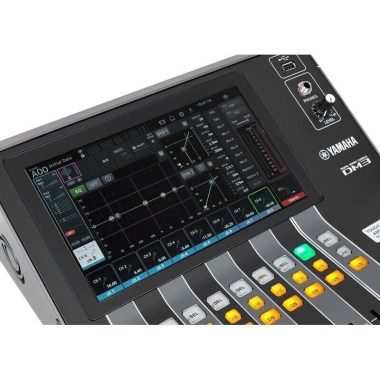

• 9" Multi touchscreen

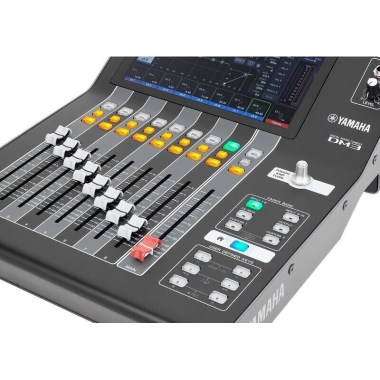

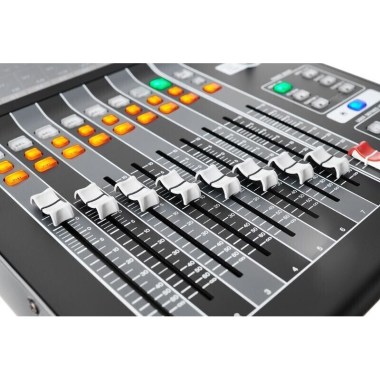

• 9 Motorised faders
• "Turn & Touch" controls
• 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
• 16 Mono inputs + 1 Stereo + 2 FX return
• 8 Outputs
• Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
• DAW Remote Feature (HUI)
• OSC support for installations
• Editor app available for tablet (tablet not included)

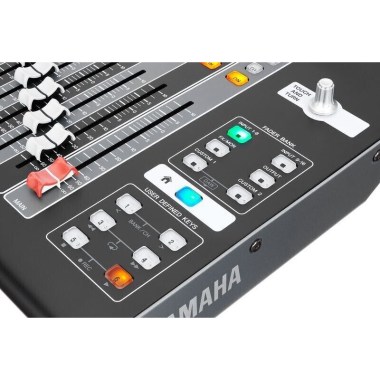

• 6 Freely assignable buttons
• 2 x 2 Channel recording/playback via USB port
• 18 Selectable effects + GEQ on Mix 1-6 and Stereo Bus

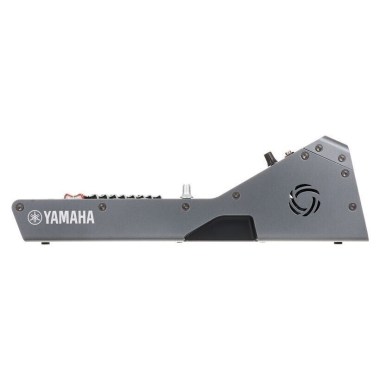

• Dimensions (W x H x D): 320 x 140 x 455 mm
• Weight: 6.5 kg
• Includes Steinberg Cubase AI and VST Rack Elements

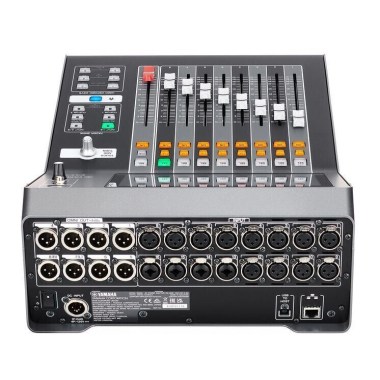

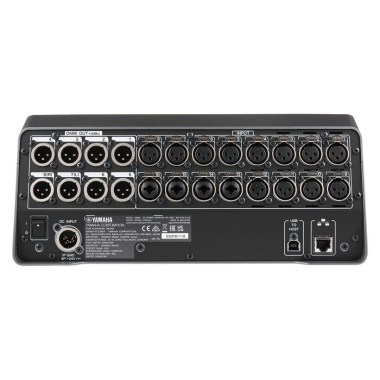

Connections

• 16 Mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
• 8 Line outputs: XLR
• Stereo headphone output: 6.3 mm jack
• USB to Host
• USB to Device
• Ethernet RJ45
