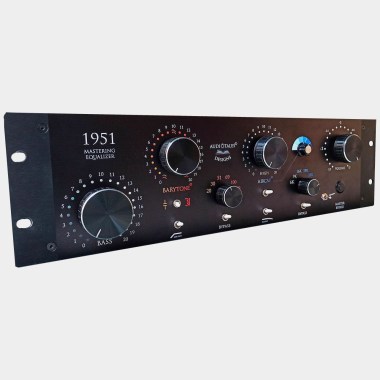

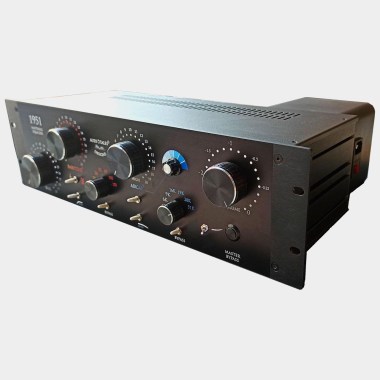

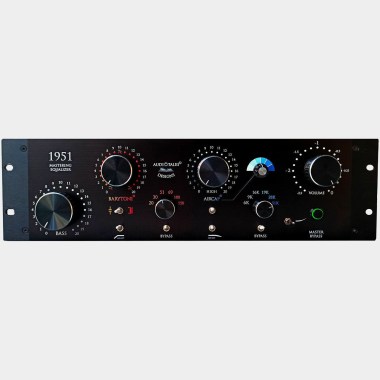

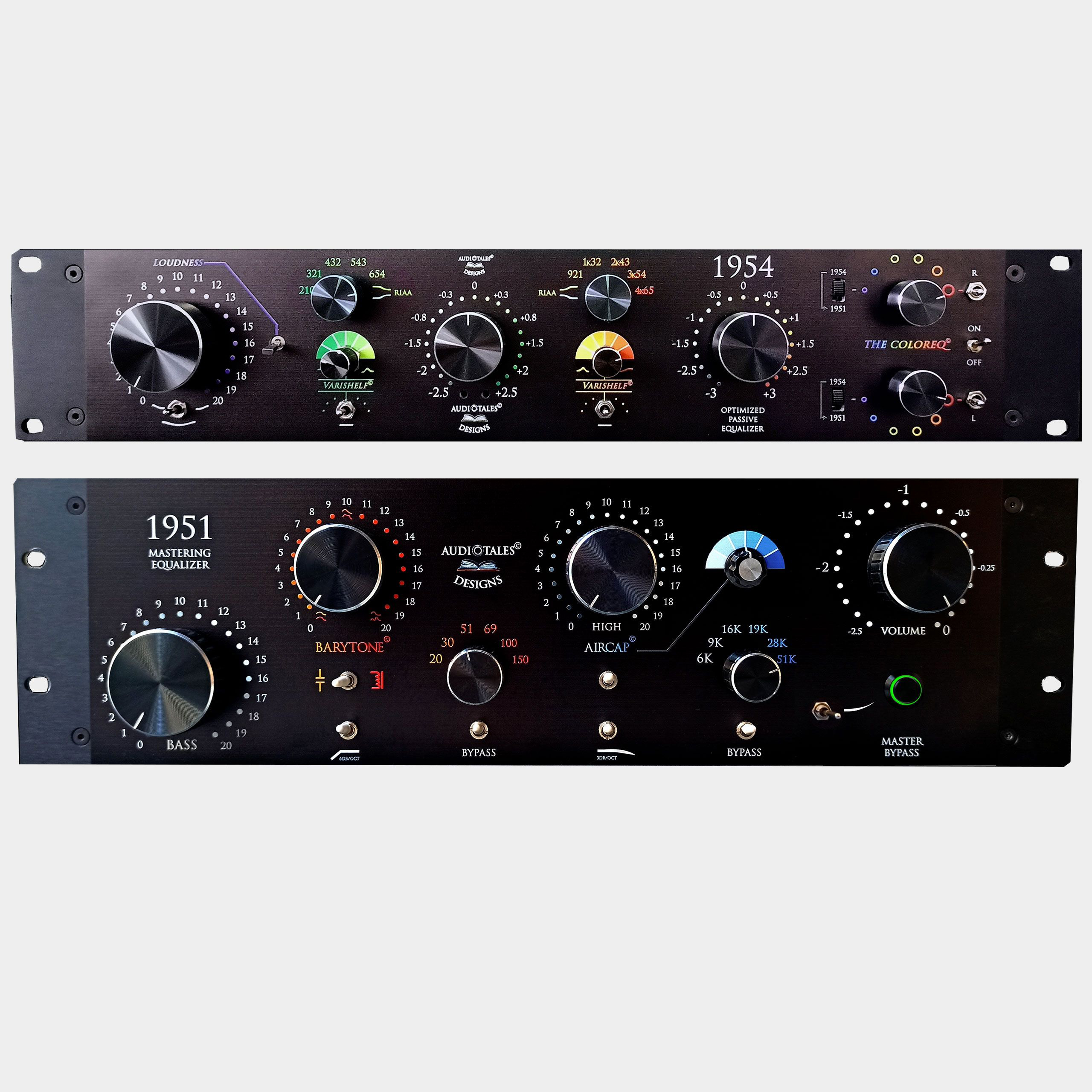

AudioTales Designs 1951ME & 1954 Bundle

The name 1951 comes as an hommage to the very first passive tube eq design (released in 1951).

Also introducing two brand new features : Barytone & Aircap
• Reshape the lowend freely with Barytone, from Lowshelf to Baxandall curves..and more.
• Bring the Highshelf to the next level of clarity thanks to Aircap.

Designed for the Mastering engineers by a Mastering engineer, here is what we have on the menu:
• All tube, class A, Stereo EQ.
• Altec & Lansing input transformers (while supplies last)
• Jensen output transformers
• Tubes : NOS Sylvania 6SL7 WGT / NOS Sylvania 6922 (while supplies last)
• NEW circuitry : BARYTONE & AIRCAP
• NEW switchable Shelf & Bax curve on the highs
• NEW 3db/oct high cut filter + 6db/oct lowcut filter
• 6 Frequencies per bands
• Output volume control
• Bypass per band + Master hardwired bypass
• Headroom : +28db (1khz sinewave tone test, +25db@20hz)
• Noisefloor : -105dB (Max -95db)
• Freqency response 15hz-60khz (+/-3db) / 20-51khz (+/-0.1db between L/R)
• Input impedance : 10 kohms
• Output impedance : 510 ohms
