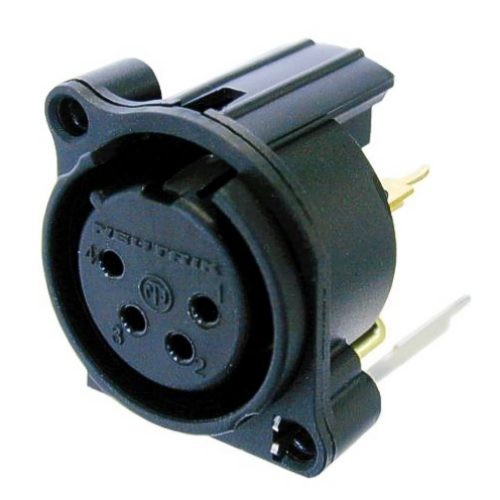

Neutrik NC4FAV-0

The `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (-23mm between centres)-. New designed fork type contacts with hard gold plating and polished contact areas. UL recognized component.4 pole female XLR receptacle, grounding: without ground / shell contact, vertical PCB mount, Retention spring instead of latch, color coding possibleFeatures & BenefitsSmallest XLR receptacles, highest packing densityPlastic housing, steel retention springFork type female contactPolished contact areas and hard gold platingHousing flammability UL94HBProductConnector Type XLRGender femaleElectricalCapacitance between contacts ? 7 pFContact resistance ? 6 m?Dielectric strength 1,5 kVdcInsulation resistance > 2 G? (-initial)-Insulation resistance > 1 G? (-after damp heat test)-Rated current per contact 6 ARated voltage 50 VGrounding options Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1MechanicalInsertion force ? 20 NWithdrawal force ? 20 NLifetime > 1000 mating cyclesWiring Vertical PCB mountLocking device Retention springMounting direction rearChassis shape AMounting A-ScrewMaterialContact plating 0.2 µm AuCo over 2 µm NiP15 (-Tribor®)-Contacts Bronze (-CuSn6)-Insert Polyamide (-PA 6.6 30 %- GR)-Locking element Steel Ck67Flange Black PlasticEnvironmentalFlammability UL 94 HBStandard compliance IEC 61076-2-103Protection class IP 40Solderability Complies with IEC 68-2-20Temperature range -30 °C to +-80 °C

Подробное описание

Аксессуар	нет
Кол-во контактов	4
Контакт-деталь	мама
Монтаж	в печатную плату
Позолоченные контакты	да
Размер панельного разъема	A
Установка	на панель
Цвет корпуса	черный
