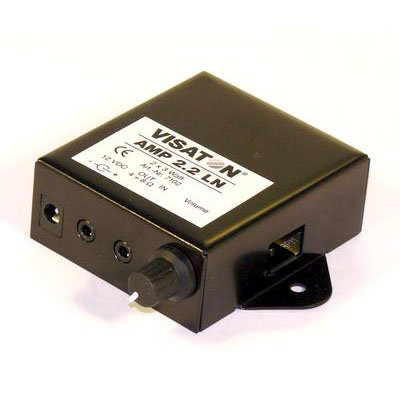

Visaton AMP 2.2 LN

Stereo amplifier with level controls, e.g. for multimedia applications. Suitable for use with small loudspeakers with impedances of 4 to 8 ohms.Robust metal housing with two fixing lugs. Can be connected directly to the line out or headphones socket of a PC audio card, while the input sensitivity is regulated via the level control. Power supply (-12 V)- is via a mains adapter (-not supplied)- or the computer'-s on-board power supply. Short-circuit proof.High signal-to-noise ratio.Typical applications:- Info terminals- Computer displays- ShowcasesTechnical Data:Power supply12 V DCQuiescent current46 mAInput impedance10 kOhmMax. current consumption1.1 APower output (-sine, 1%- / 5%- / 10%- THD)-2 x 1.5 / 2.5 / 3.2 W (-4 Ohm)-2 x 1.7 / 1.9 / 2.1 W (-8 Ohm)-Input voltage (-full conduction)-700 mVOutput impedance1.1 OhmSNR81 dB (-A)- / 78 dB (-ext)-Frequency response (-?3 dB)-40 Hz–40 kHzTerminal In-/Outputjack 3.5 mm stereoTerminal DC5.4 mm outer diam. (-?)-2.1 mm inner diam. (-+-)-Net weight0,178 kgTemperature range?10 ... 50 °C
