Erica Synths Voltage controlled oscillator AS3340
ПроизводительErica Synths
Доступность:на заказ
Артикул:564620
982 Р
The AS 3340 is a completely self contained, precision voltage controlled oscillator, featuring both exponential and linear control scales and up to four buffered output waveforms: triangle, sawtooth, square, and pulse with voltage controllable pulse width. Аксессуары для синтезаторов Erica Synths Voltage controlled oscillator AS3340 Вы можете купить по выгодной цене в наших музыкальных магазинах в Москве и Санкт-Петербурге, интернет-магазин, доставка по России.
Этот товар поставляется на заказ. Уточним доступность или предложим замену!
Описание
The AS 3340 is a completely self contained, precision voltage controlled oscillator, featuring both exponential and linear control scales and up to four buffered output waveforms: triangle, sawtooth, square, and pulse with voltage controllable pulse width.Features
- Large Sweep Range: 50,000:1 min
- Fully Temperature Compensated
- Four Output Waveforms Available- No waveform trimming required
- Summing Node Inputs for Frequency Control
- High Exponential Scale Accuracy
- Low Temperature Drift
- Voltage Controlled Pulse Width
- Hard and Soft Sync Inputs
- Linear FM
- Buffered, Short Circuit Protected Outputs
- ﾱ15 Volt Supplies
- CEM 3340 / CEM3345 replacement

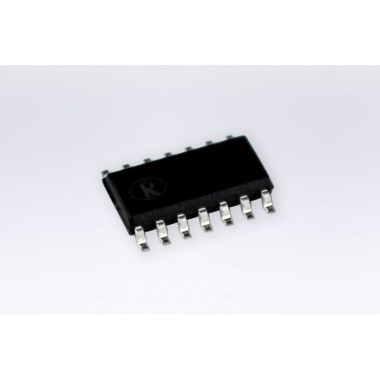

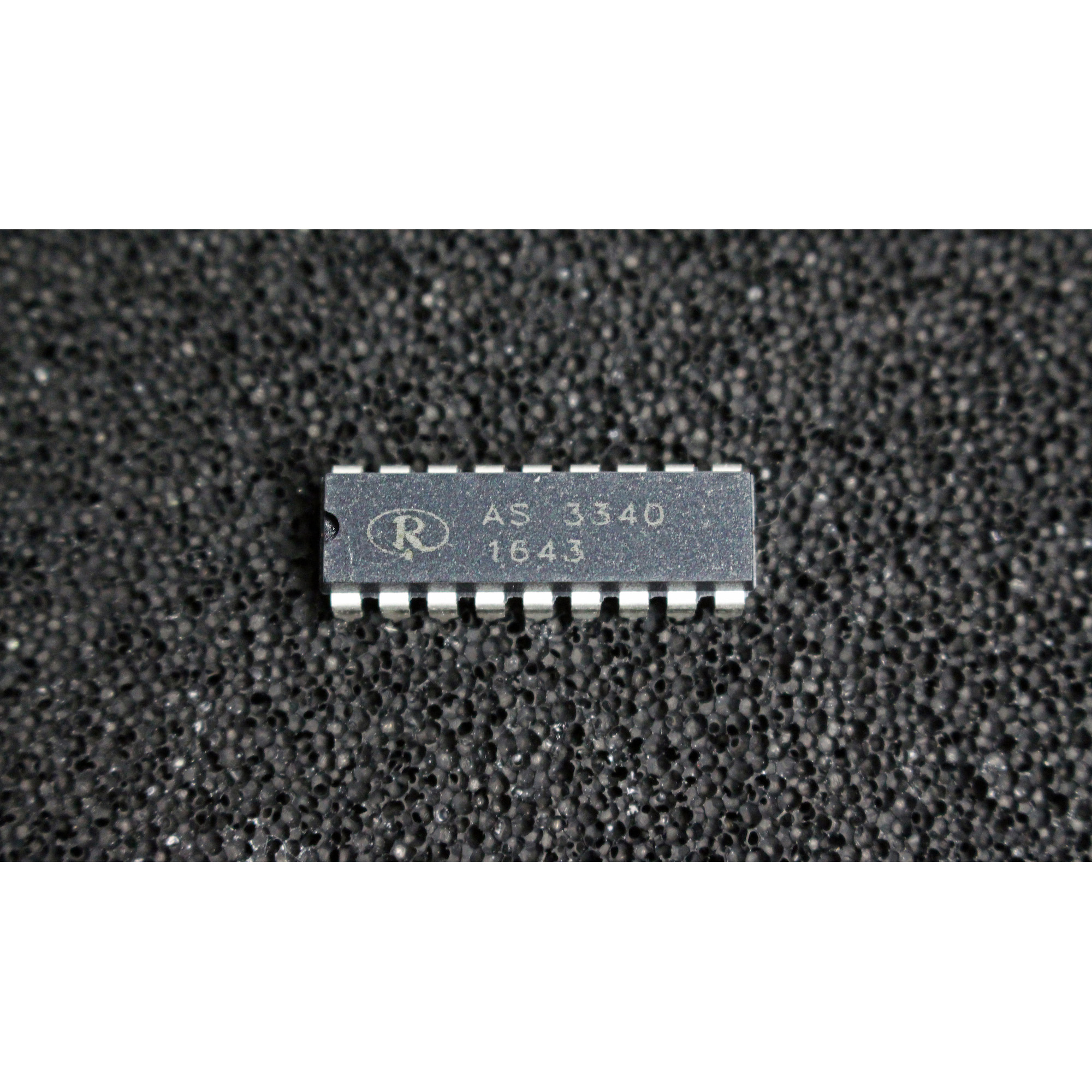

The full temperature compensation makes these VCOs extremely stable and eliminates the need for a temperature compensation resistor. The AS3340 is pin to pin compatable with CEM3340, but the chip is fully redesigned in order to improve stability and eliminate some native faults and it also comes in DIP-14, SOIC-14 and QFN-24 cases for very compact designs.
NB! For 100+ pcs and/or in SOIC, QFN cases, please send an inquiry to Этот адрес электронной почты защищён от спам-ботов. У вас должен быть включен JavaScript для просмотра.
Datasheet is downloadable below.
