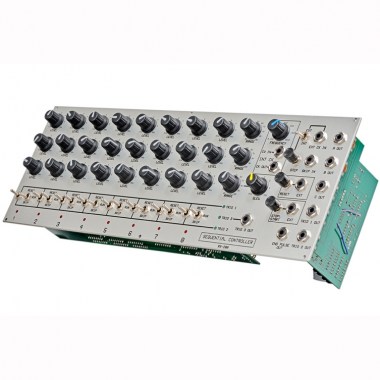

Analogue Systems RS-200 Sequencer

A true analog step sequencer with three rows of eight steps for generating control voltages and trigger signals.

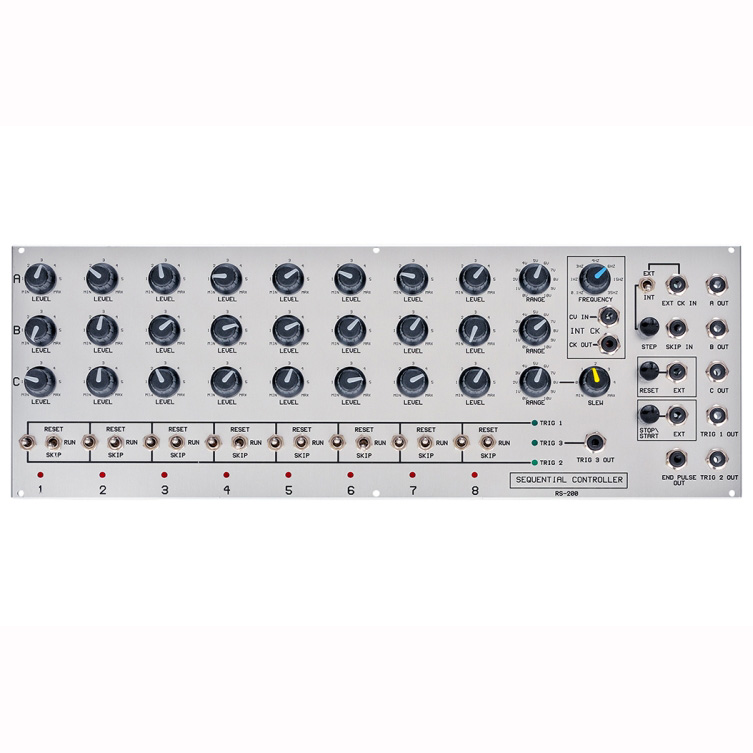

The RS-200 impresses with an internal, voltage controllable clock generator, portamento, reset start/stop functions and a voltage influenced skip feature. Each of the three rows A, B and C has eight potentiometers for setting the voltage for each step plus a range potentiometer that sets the maximum possible output voltage between 1 and 10V (read: 1-10 octaves). Row C has in addition a slew parameter, smoothing the abrupt voltage changes between steps - a classic portamento up to 1 second length. The section below has a number of switches for generating triggers and events: The Trigger-switches generate a trigger for each step: in upper switch position a trigger will be output for the according step at the "Trig Out 1" socket. Middle position = off. Bottom position = trigger at "Trig Out 2". The output "Trig Out 3" generates triggers at each step, no matter which position the switches are. The eight RESET/RUN/SKIP switches activate per step a certain global function: Reset: sets the sequencer back to step 1, this is used to shorten the sequence. Run: step will be played normally Skip: this step will be skipped and the sequencer proceeds directly from the previous step to the next one. The skip function will change though when a CV is applied to the Skip In at the right hand section (see below) A control voltage ranging from 1V to 10V at the Skip input will modify the behaviour of a skipped step. Instead of being skipped, the CV will be held as long as it is removed or if it falls below 1V. A reset button and a reset socket are used for external resetting of the sequencer. Another button and a trigger input start and stop the sequencer. After finishing each sequence cycle a trigger will be generated at the "End Pulse Out" socket. The RS200 features an integrated, voltage controllable clock generator; its clock is available at a socket and can be used for synchronising other devices. Alternatively you can apply an external clock. A switch selects the clock source: upper position = external clock, bottom position = internal clock, middle position = proceed to the next step by hitting the STEP button.

All modules by Analogue Systems come ready to use with five years warranty mounted in the by the customer preferred rack or cabinet.

For a timely delivery please confirm your choice and configuration as customer or specialised dealer via email
