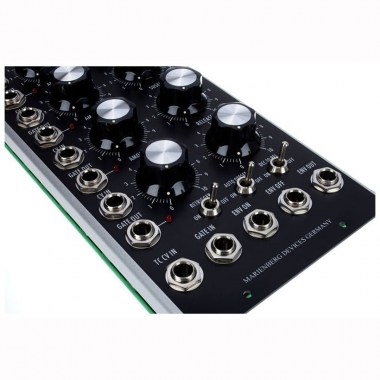

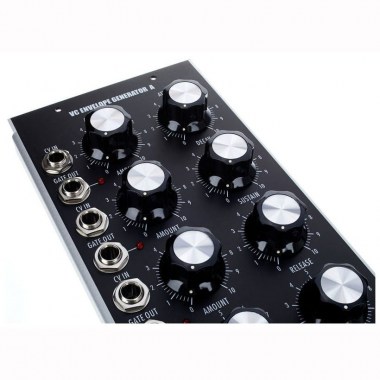

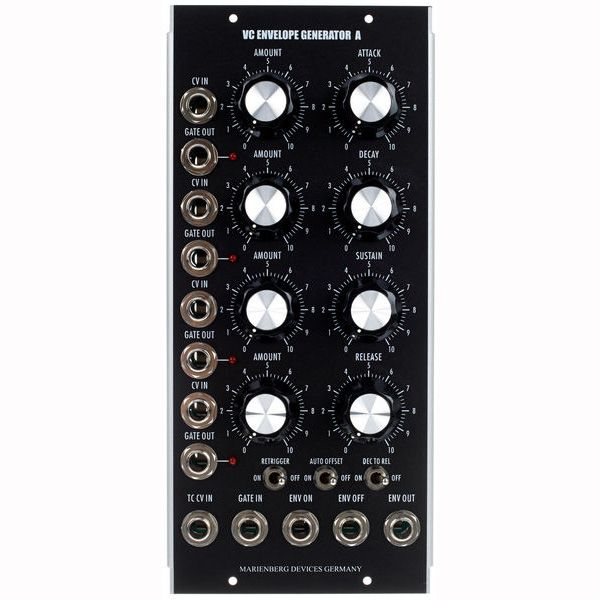

Marienberg Devices VC Envelope Generator A

Voltage-Controlled Envelope GeneratorComplex ADSR envelope generator with advanced functions. Each phase can be modulated with a control voltage and upon reaching each phase, a gate signal is generated and provided at its own output. This can be used to create interesting switching states or to connect several envelopes. Another special function is "Time Compress" - a control voltage input over which all phases can be shortened globally. This allows the envelope curve to be synchronised with the speed of the sequencer.

• Developed and handmade in Germany
• Analogue extended envelope generator
• Gate output for each phase
• "Time Compress" function
• Different trigger modes selectable
• 1.5 ms to 10s for attack, decay and release phase
• Voltage range per input 0 to 10 V
• Voltage range per gate output 0 to 5 V
• Power consumption: 80 mA
• Connectors: 6.3 mm mono jack

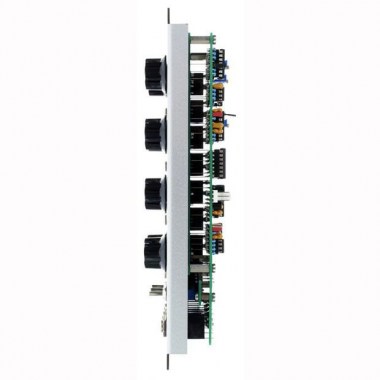

• Dimensions: 222.25 x 101.6 x 40 mm
• Weight: 491 g
• Can only be operated with Marienberg Devices power supply units!

Further Information

Width	10,16 cm
