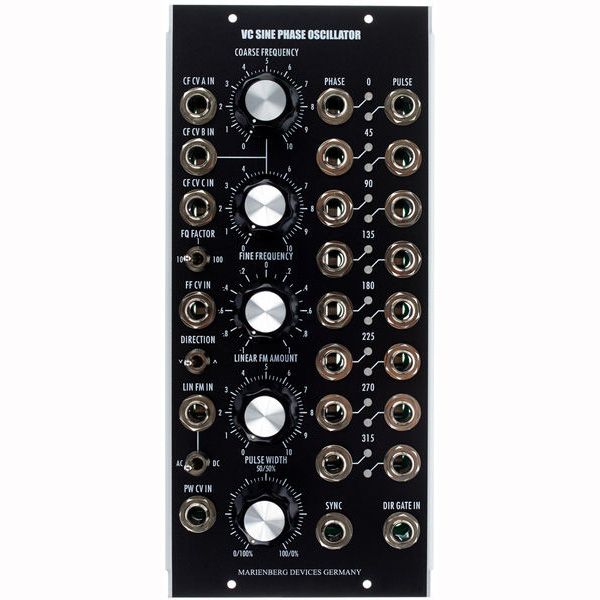

Marienberg Devices VC Sine Phase Oscillator

Voltage-Controlled Sine-Phase OscillatorThe sinusoidal phase oscillator from Marienberg Devices provides the sine and pulse waveforms at eight outputs, each shifted by 45°. This results in numerous experimental applications such as extended linear frequency modulation, realisation of a resonator by controlling a plurality of bandpass filters, or mixing of the individual phase signals for generating complex waveforms.

• Developed and handmade in Germany.
• Analog oscillator with the sinusoidal and pulse waveforms
• 8 outputs per waveform with a 45 ° phase shift
• CV inputs for hard sync and pulse width modulation
• Frequency range: 0.2 Hz to 20 kHz
• Voltage range per input 0 to 10 V
• Power consumption: 170 mA
• Connectors: 6.3 mm mono jack cable
• Dimensions: 222.25 x 101.6 x 54 mm
• Weight: 593 g
• Can only be operated with Marienberg Devices power supply units!

Further Information

Width	10,16 cm
variants	Marienberg
