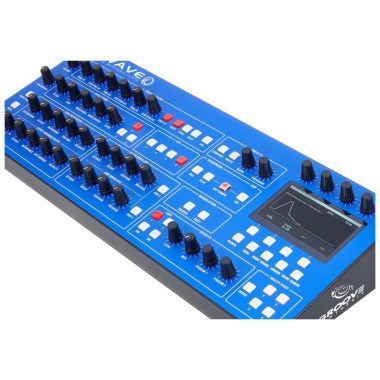

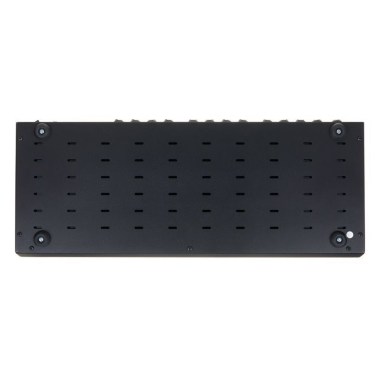

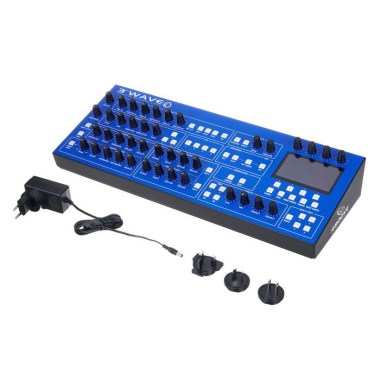

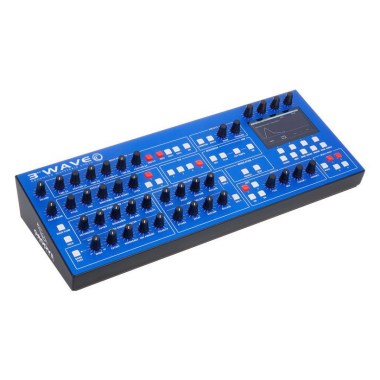

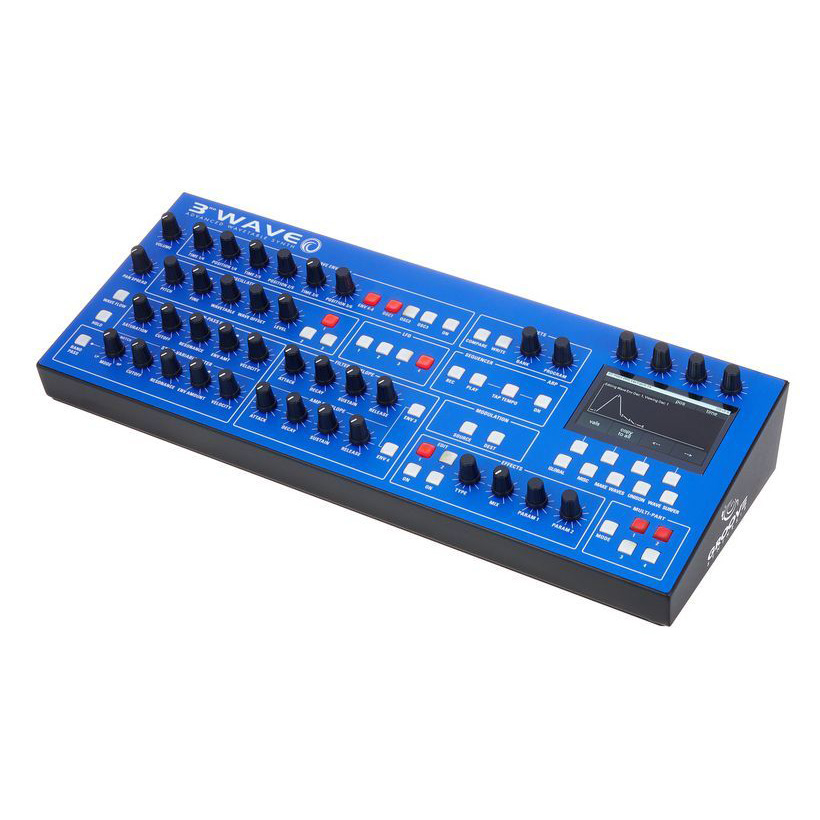

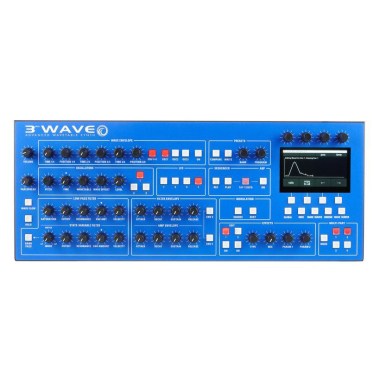

Groove Synthesis 3rd Wave Desktop Module

• 24-Voice polyphony
• 4-Part multitimbral
• 3 Digital oscillators per voice
• 64 User wavetable positions with 48 wavetables with 64 waveforms per table
• 32 Original 8-bit wavetables of the PPG2 instruments
• 7 Modelled analogue waveforms (Sine, Saw, Triangle, Supersaw, Pulse, White Noise, Pink Noise)
• VCO sync
• Linear FM
• Analogue low-pass filter (Dave Rossum design)
• State-Variable Filter
• 4x ADSR+ delay envelopes
• 4x LF oscillators Triangle, Sawtooth, Reverse Sawtooth, Square, Pulse 1, Pulse 2, Pulse 3 and Random (S&H)
• 2 Digital effects processors (BBD, Stereo Delay, Tape Delay, Chorus, Phaser, Flanger, Distortion Pedal, Rotating Speaker, Ring Mod, Room Reverb, Hall Reverb, Super Plate Reverb)
• Integrated Custom Wavetable Maker 16-bit / 96 kHz (sample-to-wave function)
• Sequencer (4 multi-part song per programme, 24 sequences per song)
• Arpeggiator
• 16-Slot Modulation Matrix pro Multi-Part
• 41 Knobs and 43 buttons
• Pitch and Mod wheels
• 500 Presets (can be overwritten by user presets)

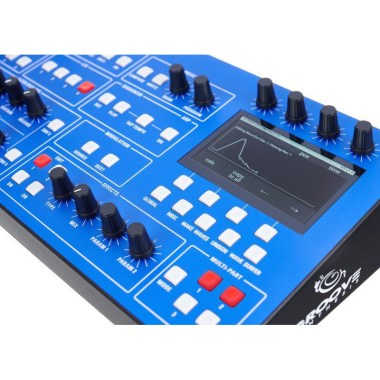

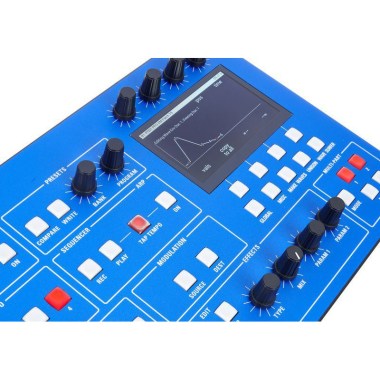

• Display

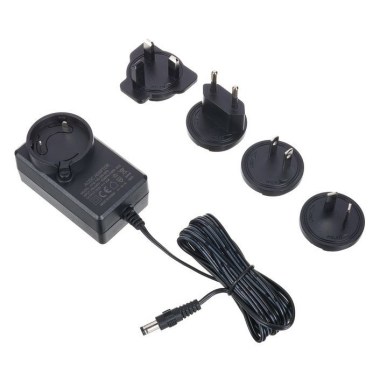

• Integrated power supply unit 100 - 240 V, 50 - 60 Hz, 65 Watt
• Dimensions (W x D x H): approx. 521 x 213 x 79 mm
• Weight: 4.63 kg

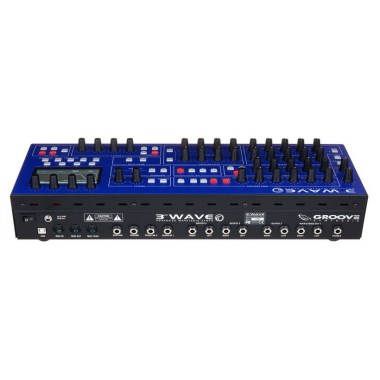

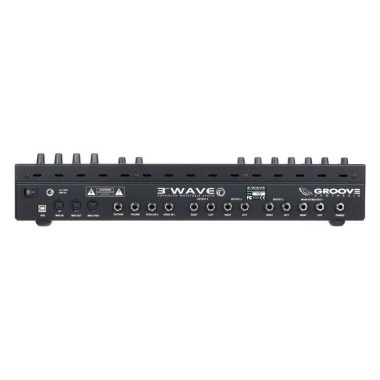

Connections:

• 8 Line outputs: 6.3 mm jack (4x stereo L/R )
• Stereo headphone output: 6.3 mm jack
• MIDI In / Out / Thru
• USB MIDI
• Line Eingang: 6,3 mm Klinke
• Pedal input: 6.3 mm jack for sustain / foot switch
• Input for volume and expression pedal: 6.3 mm jack
