ADL 1700

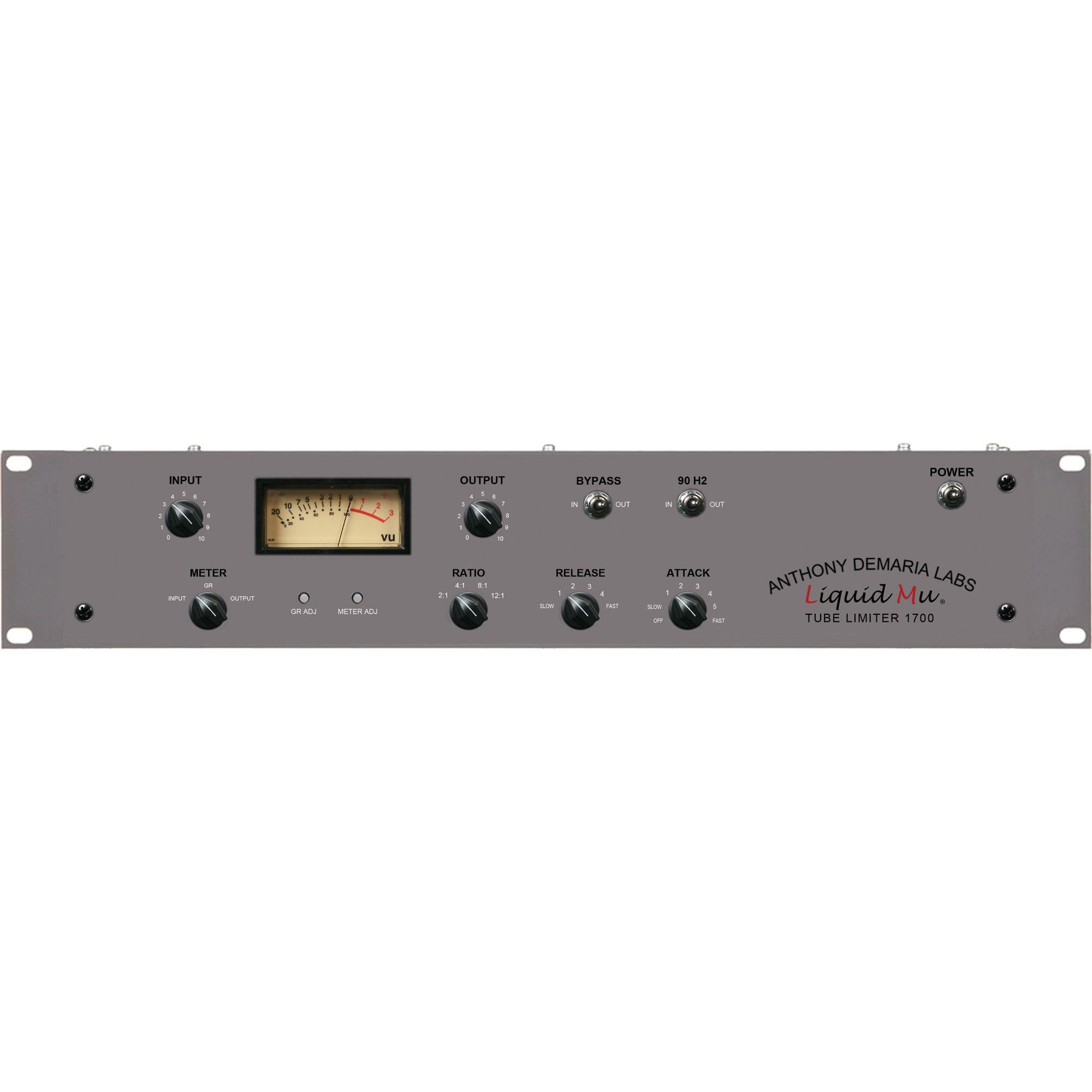

The ADL 1700 Liquid Mu Peak Limiter is often referred to as the little brother of the Fairchild 670. The 1700 employs an all discrete tube design modeled after and a cross between the vintage UA 175-B and 177 limiter, except ADL enhanced some features for added flexibility. Unlike an opto limiter, the 1700 uniquely reduces the Mu or gain as the input signal is increased.

The 1700 has many practical applications for recording studios, tracking, mixing, stereo buss, vocals and instruments, live concert sound reinforcement as well as for film and broadcast work.

Features:

• All discrete tube design
• Transformer in/out
• 90Hz high pass filter switch
• Bypass switch
• Heavy-duty chassis
• Handcrafted in the USA

• Frequency Response: 10Hz-30kHz
• Clip: +28 dbu
• Distortion: < 0.1% - 10-GR =< 0.5%
• Noise: -75 dB
• Input/Output Impedance: 600 Ohm
• Dimensions: Standard 19” 2-U depth 11-1/8
• Power Consumption: 28 Watts
• Power: 117 (Standard), 240 (Available on Request)
• 120V FUSE: 2-Amp Slow Blow 5x20mm
• 220V FUSE: 1-Amp Slow Blow 5x20mm
• Tube Complement: (2) 12AX7A, (3) 12BH7A/12AU7A, (1) 6BC8, (4) 6CL5
• Shipping Weight: 13 lb. or 15 Kg
