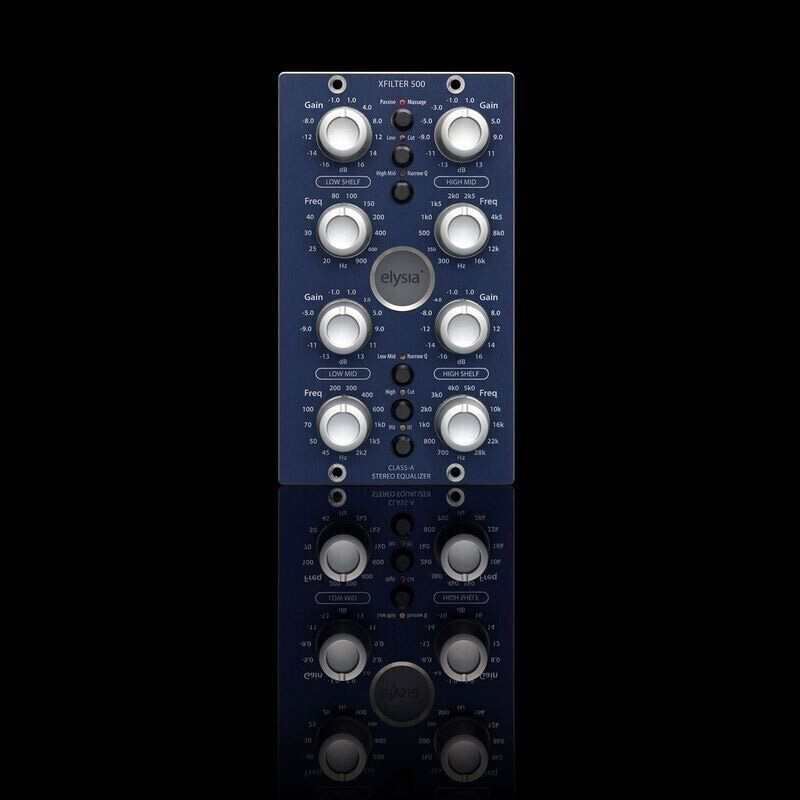

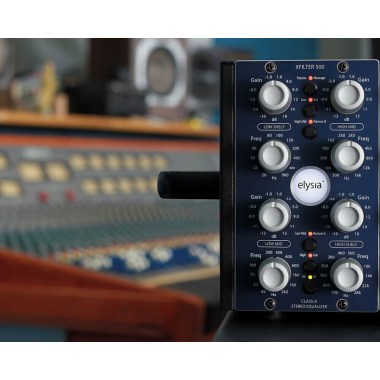

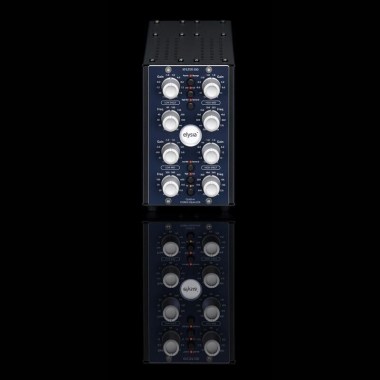

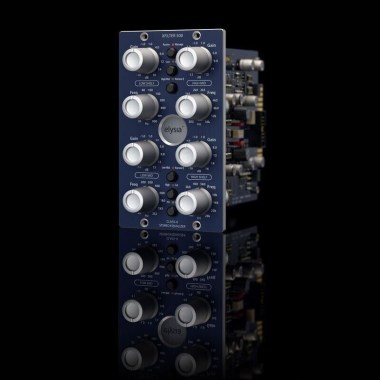

Elysia xflter 500

4-Band Analog Stereo Equalizer Module

The xfilter 500 is a true linked stereo EQ in the 500 series format. It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance film capacitors.

With its exceptionally open sound, straight transient projection and solid punch, the xfilter 500 is the perfect match for your xpressor 500 – or any other piece of outboard gear!

even there are many more!

• Build Quality

  The xfilter, just like all our products, is designed, engineered and handcrafted in Germany.

• Class-A Topology

  Consequently represents the art of discrete signal processing.

• True Stereo Link

  As one of the few exceptions in the market, the xfilter 500 processes both of its channels with just one set of controllers – a true stereo linked EQ.

• Computer-Selected Potentiometers

  Every single dual and quad layer pot we buy is measured with custom computer routines, and only the lowest tolerance ones go into production.

• Low Tolerance Capacitors

  The special series of film caps used for the xfilter performs twice as good as the industry standard in terms of component tolerance.

  Active Meets Passive

  The xfilter 500 is absolutely serious about flexibility. It offers high and low shelf bands which can be switched into high and low cut filters with resonance, two mid peak filters with wide and narrow Q, plus additional passive LC stages with shielded coils for a glorious top end.

  Technical Data

  Frequency response
  <10 Hz - 400 kHz (-3.0 dB)THD+N
  @ 0 dBu, 20 Hz – 22 kHz: 0.0018 %
  @ +10 dBu, 20 Hz – 22 kHz: 0.005 %

  Noise floor
  20 Hz – 20 kHz (A-weighted): -98 dBu

  Dynamic range
  20 Hz – 22 kHz: 120 dB

  Maximum level
  Input: +21 dBu
  Output: +21 dBu

  Impedance
  Input: 10 kOhm
  Output: 68 Ohm

  Power consumption
  Total: 210 mA
  Per slot: 105 mA
