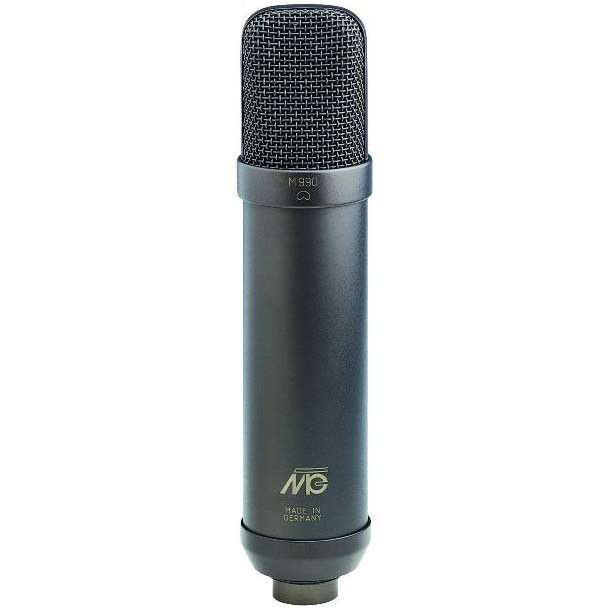

Gefell M 990

The Gefell M 990 is renowned for its high sensitivity and excellent signal-to-noise ratio. It combines modern large diaphragm capsule technology with the typical full-bodied sound of tube microphones that are preferred by vocalists and soloists. The M 990 vacuum tube condenser microphone is well-suited for difficult radio play productions as well as a supporting microphone for orchestra recordings.

The new pressure gradient transducer of the M 990 uses a large diameter gold-plated plastic diaphragm. The vacuum tube preamplifier is equipped with a pentode working as a triode selected for its sonic characteristics.

The N 920.1 power supply provides the operating voltage for the vacuum tube condenser microphone. It can be powered from AC mains with a primary voltage of 115 or 230 volts / 50 or 60 Hz.

For cable lengths over 50 meters it is recommended to have your service provider set the heater voltage of the power supply to 5.8 volts. The N 920.1 is equipped with an on/off-switch, a 7-pin Tuchel connector that powers the microphone and a 3-pin XLR connector with integrated line voltage selector.

• High sensitivity
• Excellent signal-to-noise ratio
• Modern M930 capsule
• Large diameter gold-plated plastic membrane
• Tube preamplifier with EF86

• M 990 microphone
• Wooden case
• Power Supply
• C 92.1 connection cable
• EA 92 elastic suspension
• Suitcase
