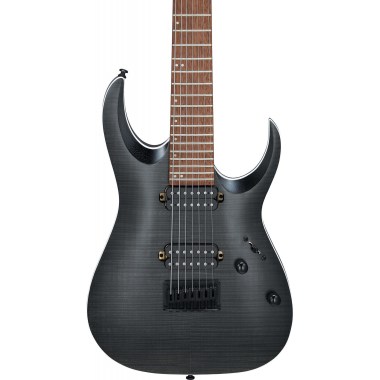

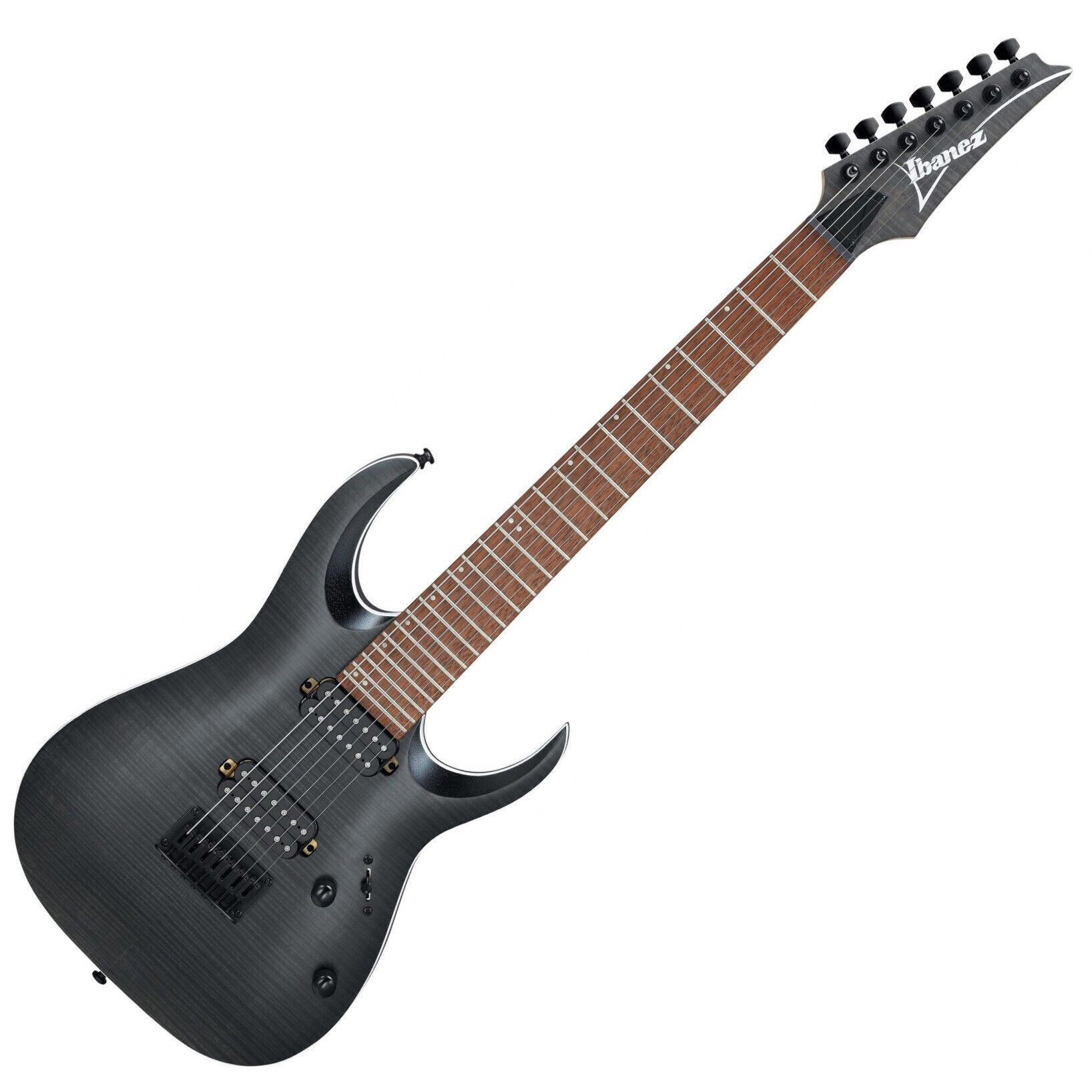

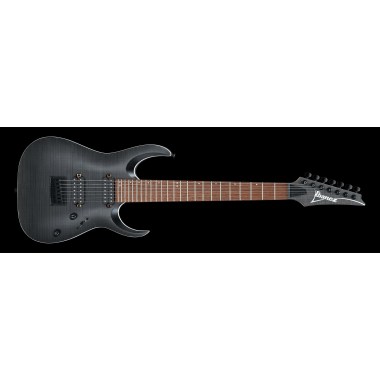

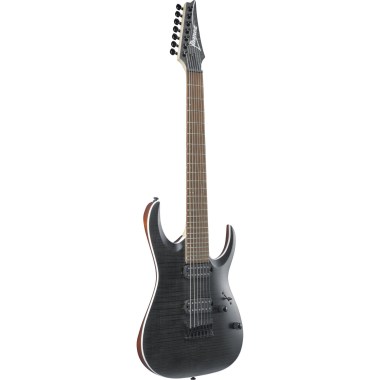

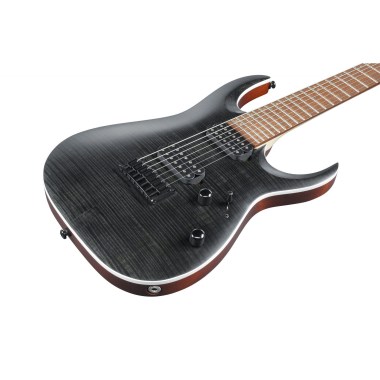

IBANEZ RGA 7-Str Transparent Gray Flat RGA742FM-TGF

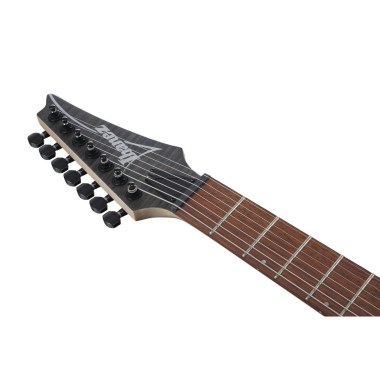

• neck type Wizard II-73pc Maple neck

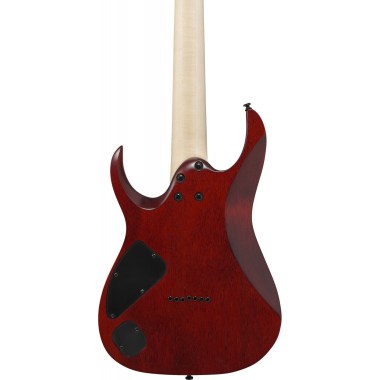

• top/back/body Flamed Maple topMeranti body

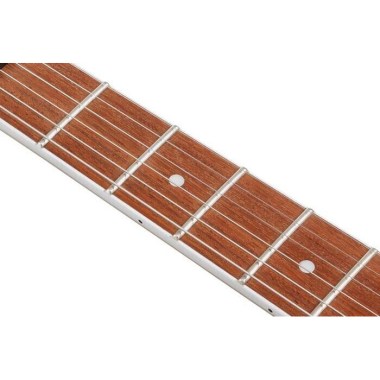

• fretboard Jatoba fretboardOff-set white dot inlay
• fret Jumbo frets
• number of frets 24
• bridge F107 bridge
• string space 10.5mm

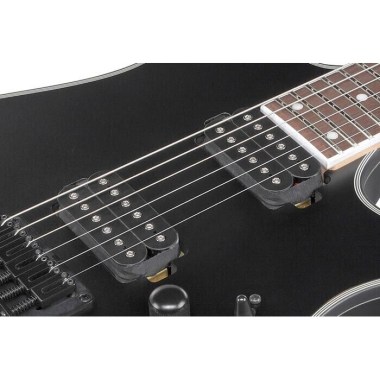

• neck pickup Quantum 7 (H) neck pickupPassive/Ceramic
• bridge pickup Quantum 7 (H) bridge pickupPassive/Ceramic
• factory tuning 1E,2B,3G,4D,5A,6E,7B
• strings D'Addario® EXL110-7
• string gauge .010/.013/.017/.026/.036/.046/.059
• hardware color Black

• • Scale : 648mm/25.5"
  • a : Width 48mm at NUT
  • b : Width 68mm at 24F
  • c : Thickness 19mm at 1F
  • d : Thickness 21mm at 12F
  • Radius : 400mmR

• DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard

DESCRIPTION

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

DESCRIPTION

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

• Recommended Case M300C
