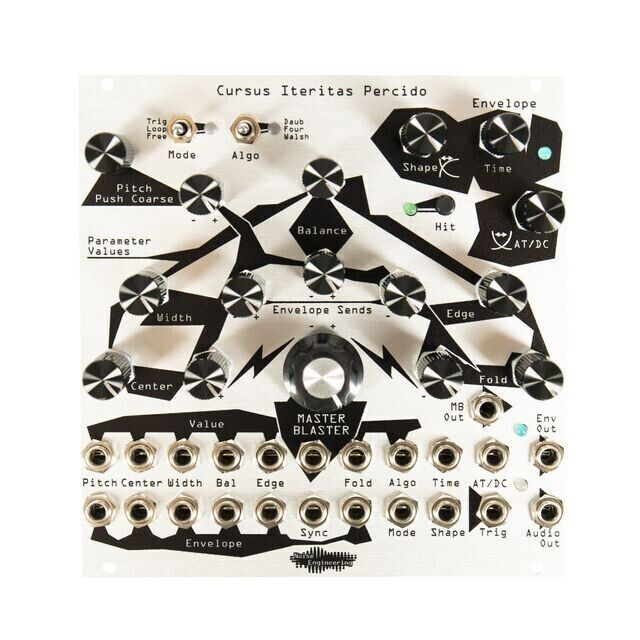

Noise Engineering Cursus Iteritas Percido silver

The Noise Engineering Cursus Iteritas Percido (Silver) is. Digital Oscillator with dynamically animated Wavetables and Master-Blaster. The Module generates its Sounds based on the 3x Wavetable forms Daubechies, Fourier and Walsh. With the parameters Pitch, Center, Width, Balance, Edge and Fold the extremely complex and versatile Wave Spectrum is traversed.. Switchable Envelope acts on these 6x Parameters with Attenuators, using Positive and Negative Amplitude.

Macro Controller

A Macro Controller, the Master-Blaster is included, which can influence the 6x Attenuverters simultaneously. At the lower Envelope Sockets, the Signal of the Envelope can be replaced by any other CV Source and from then on the Attenuverter can feed the Parameter. The Value Jacks are CV Inputs for the Attenuverter itself.

Digital Heart

The Module cannot and does not want to hide its Digital origin, one feels reminded of old Casio or Yamaha Instruments (PD or FM Synthesis), and the spectrum ranges from atonal rattle to melodic and radiantly clear. So much is possible, but above all the CIP is. very dynamic Oscillator, which comes to life through Modulation.

• 24HP Digital Oscillator Eurorack Module

• Depth: 26mm
• Wavetable Synthesis
• Envelope Curve
• Attenuverter for 6x Parameters
• Macro Controller per Attenuverter
• +12V: 105mA/60mA (if +5V on), -12V: 60mA, +5V: 0mA/75mA (if +5V on)
• Finish: Silver
