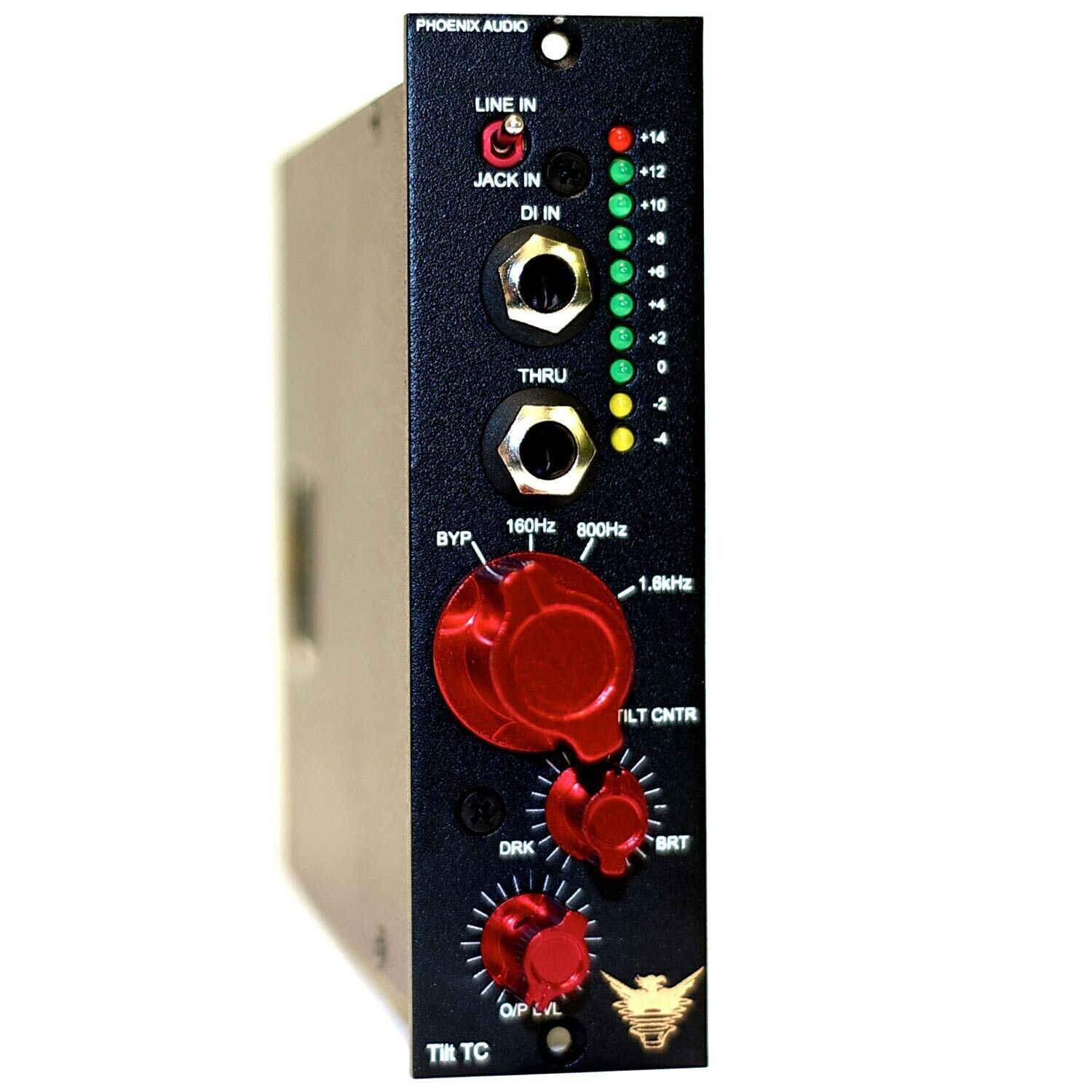

Phoenix Audio PIVOT-TC/500

The Phoenix Audio Pivot Tone Channel/500 is a balanced line level signal processor incorporating a class A discrete buffer amp from the world renown Nicerizer summing mixer, a DI with the 10meg OHM inputs found in the Nice DI.

Pivot Tone Channel uses a powerful tone control EQ , a unique 3 position Tilt EQ with 3 carefully selected tilit positions to cover lows, mid and high frequencies. A dark/bright control to tilt the EQ to darken your mix (add LF) or brighten the mix (add HF).

There is a also a 10 position LED metering that accurately represents the output level.

• Class A Stereo DI Output specs
• Frequency Response: 20 Hz to 20 khz ?0.5 dB
• Maximum Output: +26dBu @ 1Khz
• Noise: 90dB @ 22Hz to 22KHz
• Class A, discrete, truly balanced transformerless input stage
• The Class A DI has a very high input impedance (10Mohm), without the use of FETs
• Inputs: 1/4" jack (TS) input & through input on the front panel
• Transformer isolated balanced output (XLR) on the rear panel
• Tilt EQ with 3 fixed Tilt positions : 160 Hz, 800 Hz & 1.6 kHz
• Dark/bright tone control
• 10 position LED output metering
• Output level control
