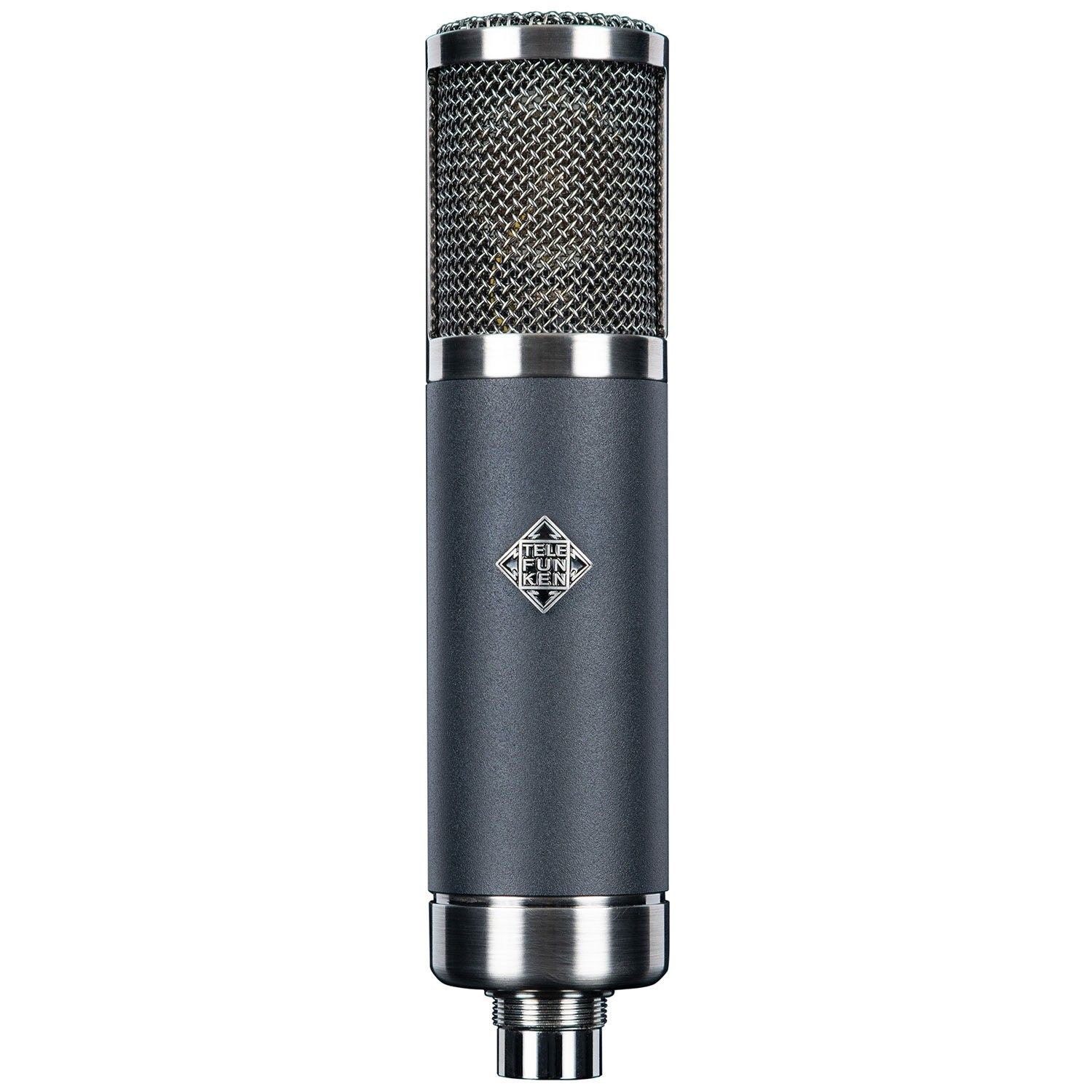

TELEFUNKEN Elektroakustik TF47

The Telefunken Elektroakustik TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.

At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top end articulation that sits perfect in a mix.

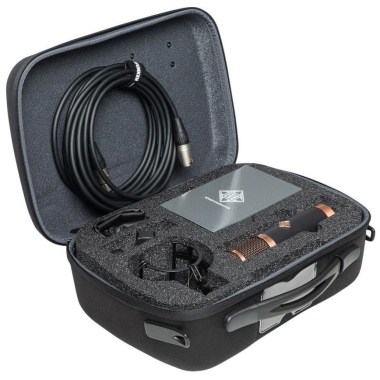

Every TF47 microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

• Forward mid-range, reminiscent of the U47
• Smooth and detailed top end
• Full and round low end
• Hand assembled in the USA
• K47-style capsule and BV8 transformer, similar to the U47

• R&B, rap or aggressive vocals, female soul vocals
• Upright bass
• Toms and kick out
• Trombone
• Cello
• Percussion

• Microphone Type:Pressure Gradient Condenser
• Mono/Stereo:Mono
• Polar Pattern:Cardioid, Omnidirectional, Figure-8
• Diaphragm Size:1" (25.4mm)
• Frequency Response:20Hz-20kHz
• Max SPL:125dB SPL
• Output Impedance:<300 ohms
• Signal to Noise Ratio:84 dBA
• Sensitivity:22 mV/Pa
• Self Noise:10dB
• Tube:5840W (NOS)
• Color:Blue, Chrome
• Power Source:External M903 power supply
• Connector:7-pin XLR (mic), 3-pin XLR (power supply)
• Dimensions:7.87" x 1.81"
• Weight:1.5 lbs.
• Included Accessories:Shockmount, Stand Mount, Carrying Case, Mic Cable, Mic Pouch
• Manufacturer Part Number:TF47
